SPECIFICATIONS

Application: Home,Agriculture/Farming, Home/Garden, Shed

Certification: None

Features: All Daylight Conditions, Corrosion Resistant, Monocrystalline

High-concerned chemical: None

Load Power (W): 800W

Model Number: L03XXZZZJ-1

Output Voltage (V): 18

Pliability: Rigid

Power Source: Solar

Recommended Environment: Outdoor

Resistance Properties: Abrasion Resistant, Waterproof

Solar Power (W): 800W

Solar Technology: Monocrystalline

Specification: Normal

System Configuration: Off-Grid

Type: Solar Panel Kit

Wattage: 400-799 W

Work Time (h): 24

[More power generation]

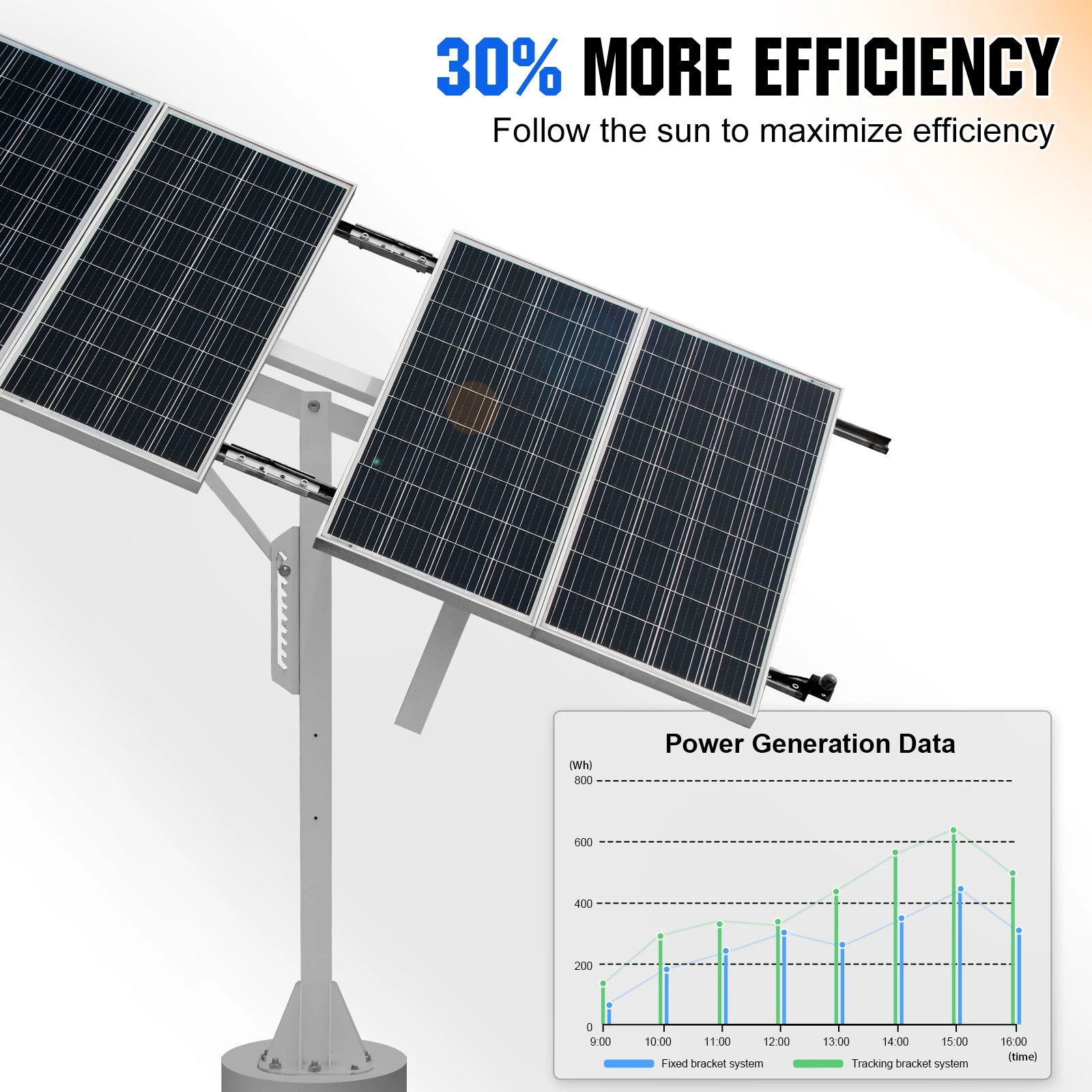

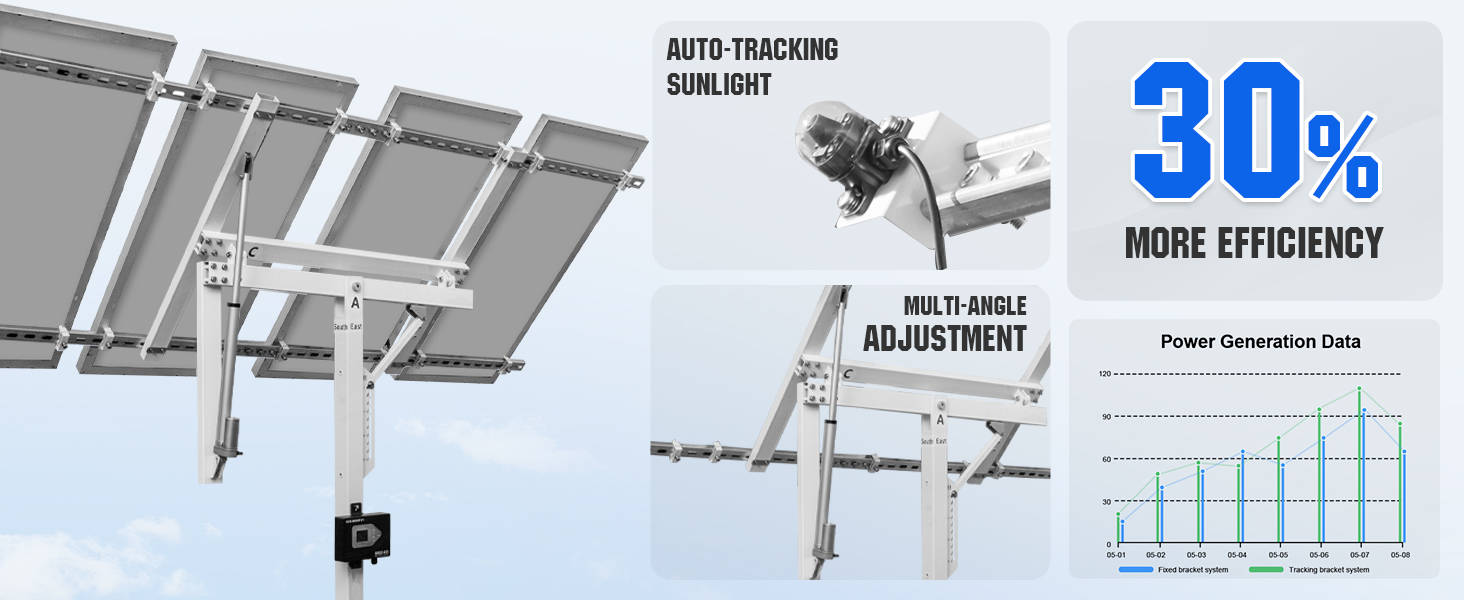

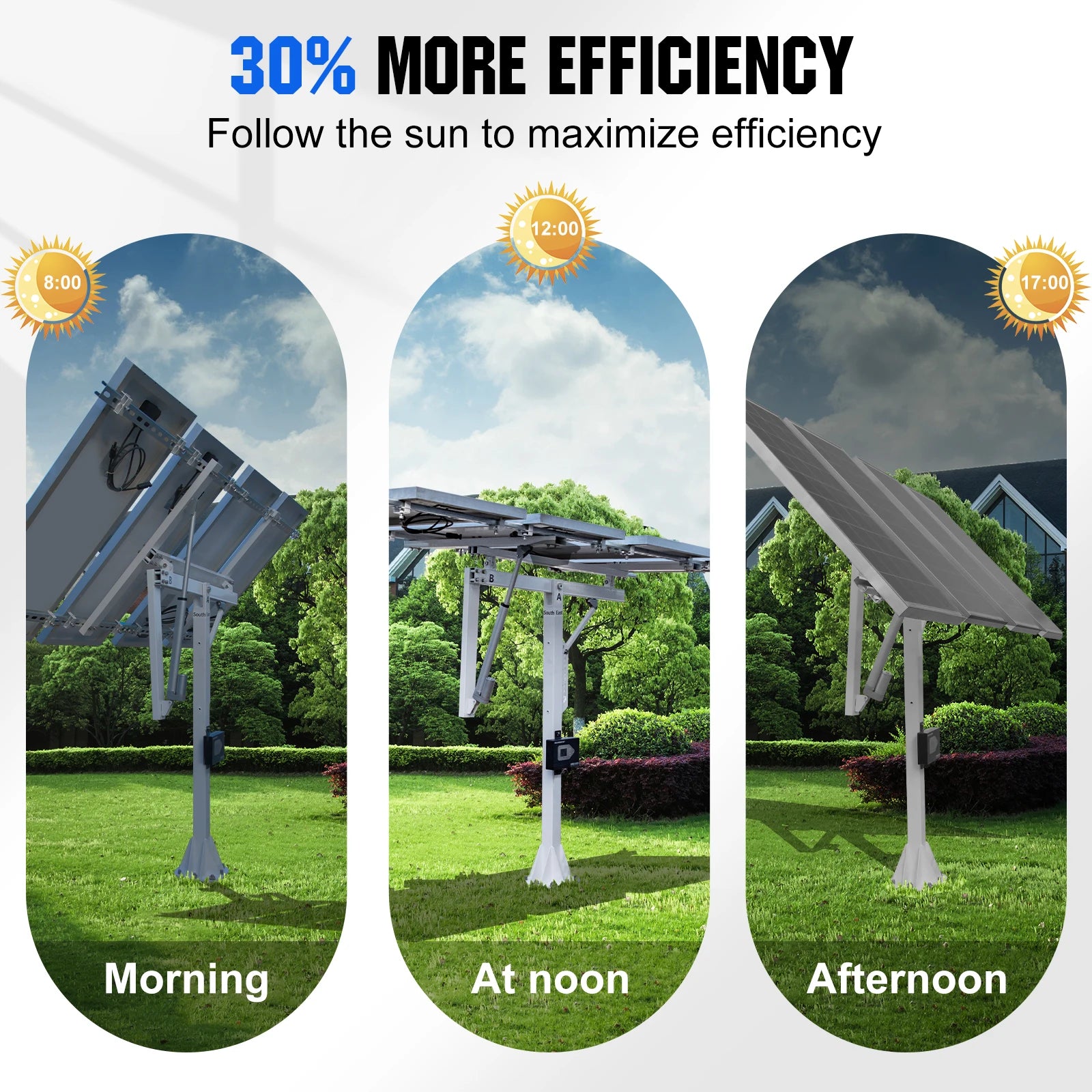

Single-axis tracking mounts maximize efficiency by keeping your solar panels facing the sun at all times. Single-axis tracking mounts can boost the power generation of solar panels by at least 30% compared to traditional fixed solar mounts.

[270° adjustment]

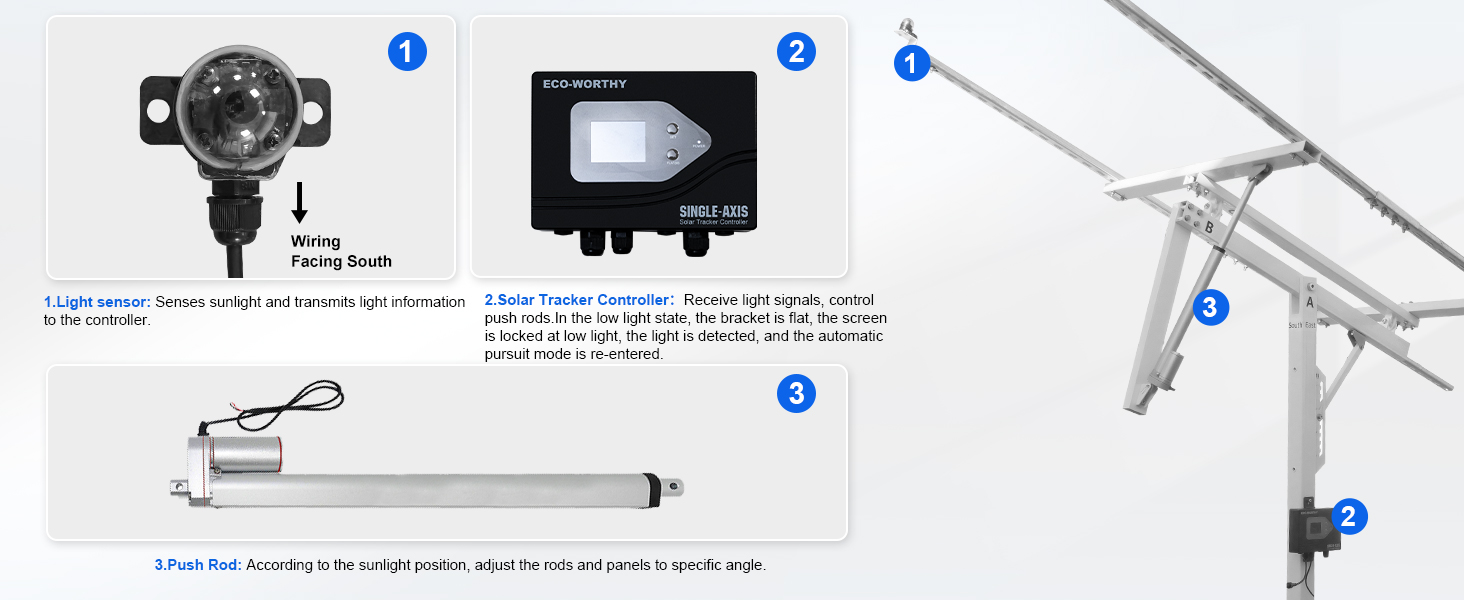

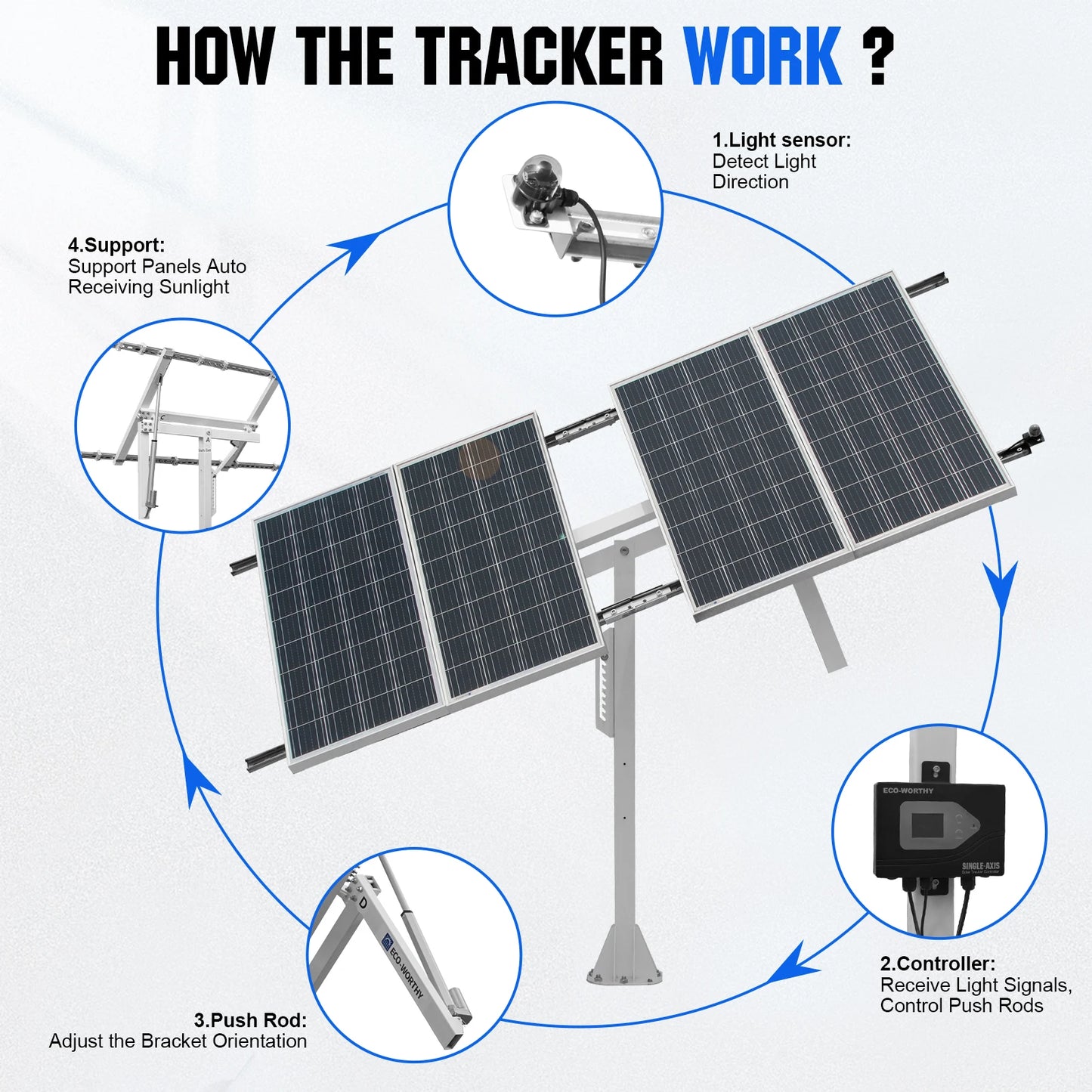

The single-axis tracking mounting system allows light sensors and controllers to work together to push the rods through 270° of angular adjustment so that the solar panels always follow the sun's rotation, absorbing solar energy from the north-southeast and north-west, thus generating more power.

[For different panels]

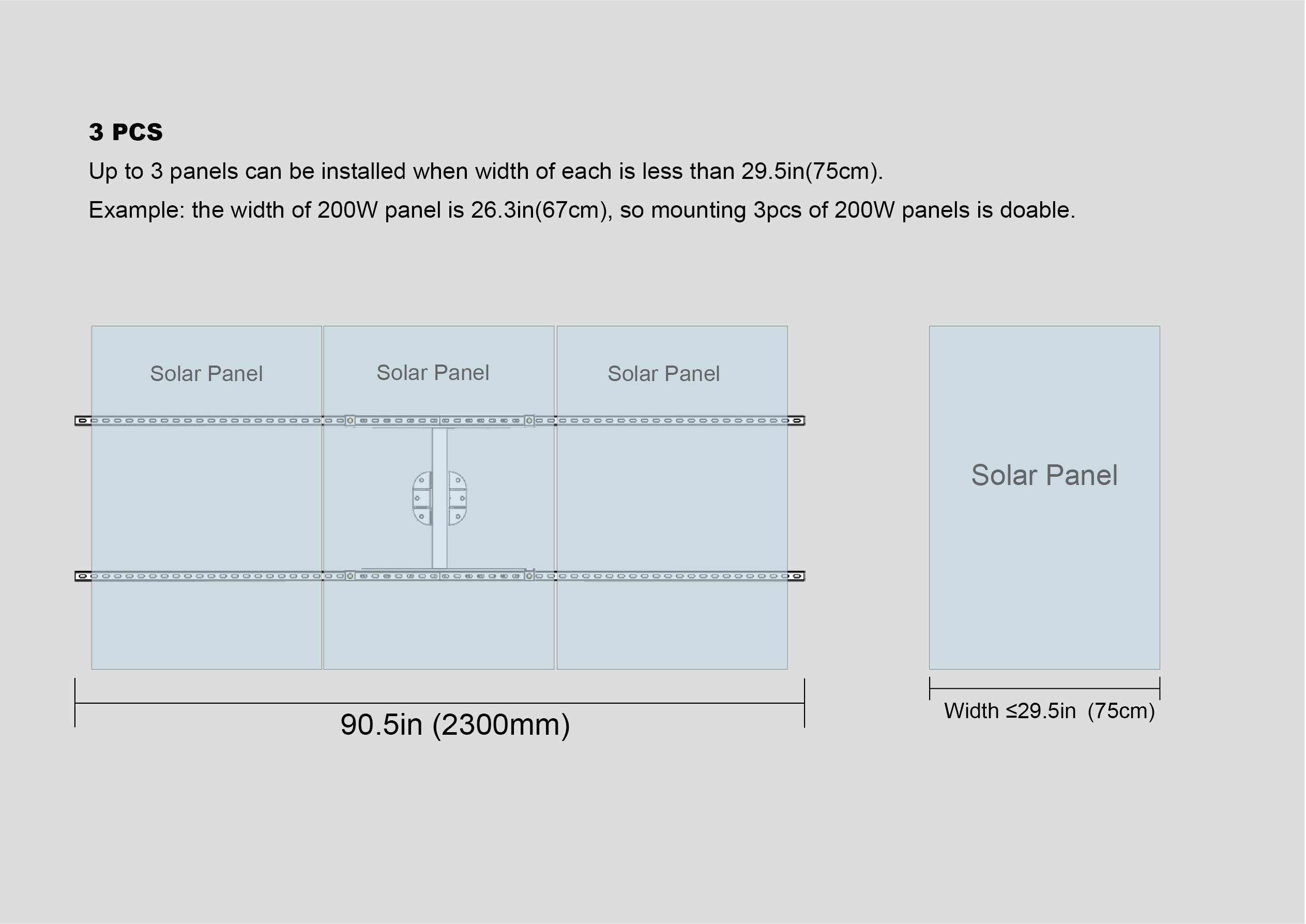

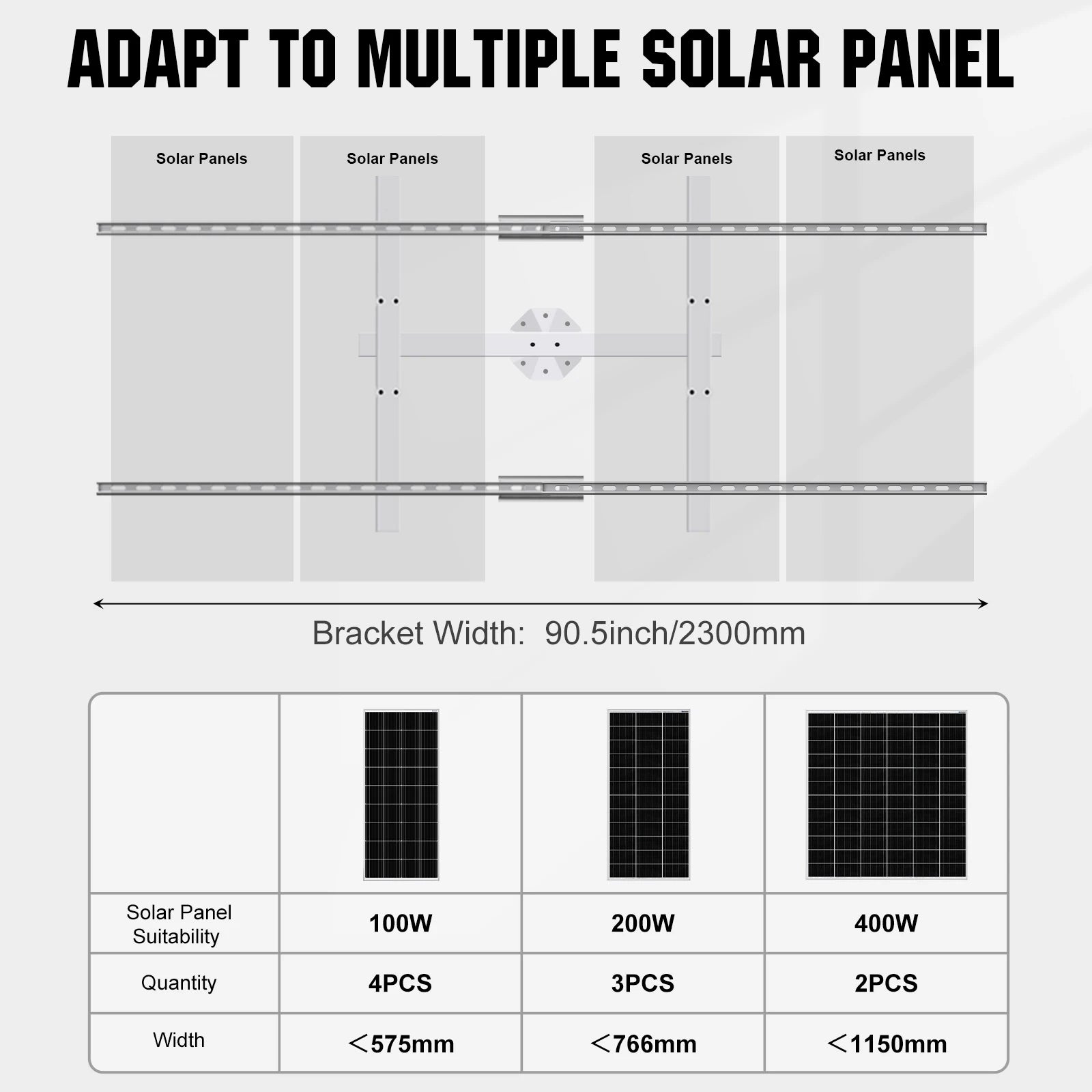

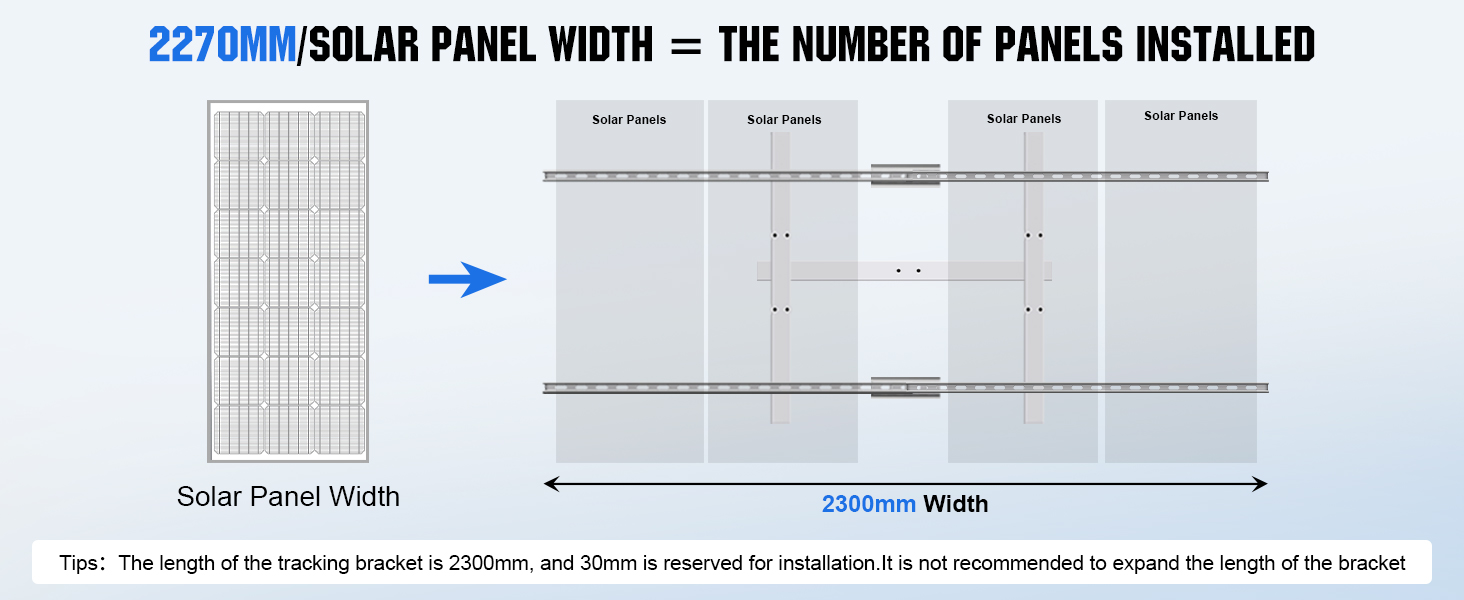

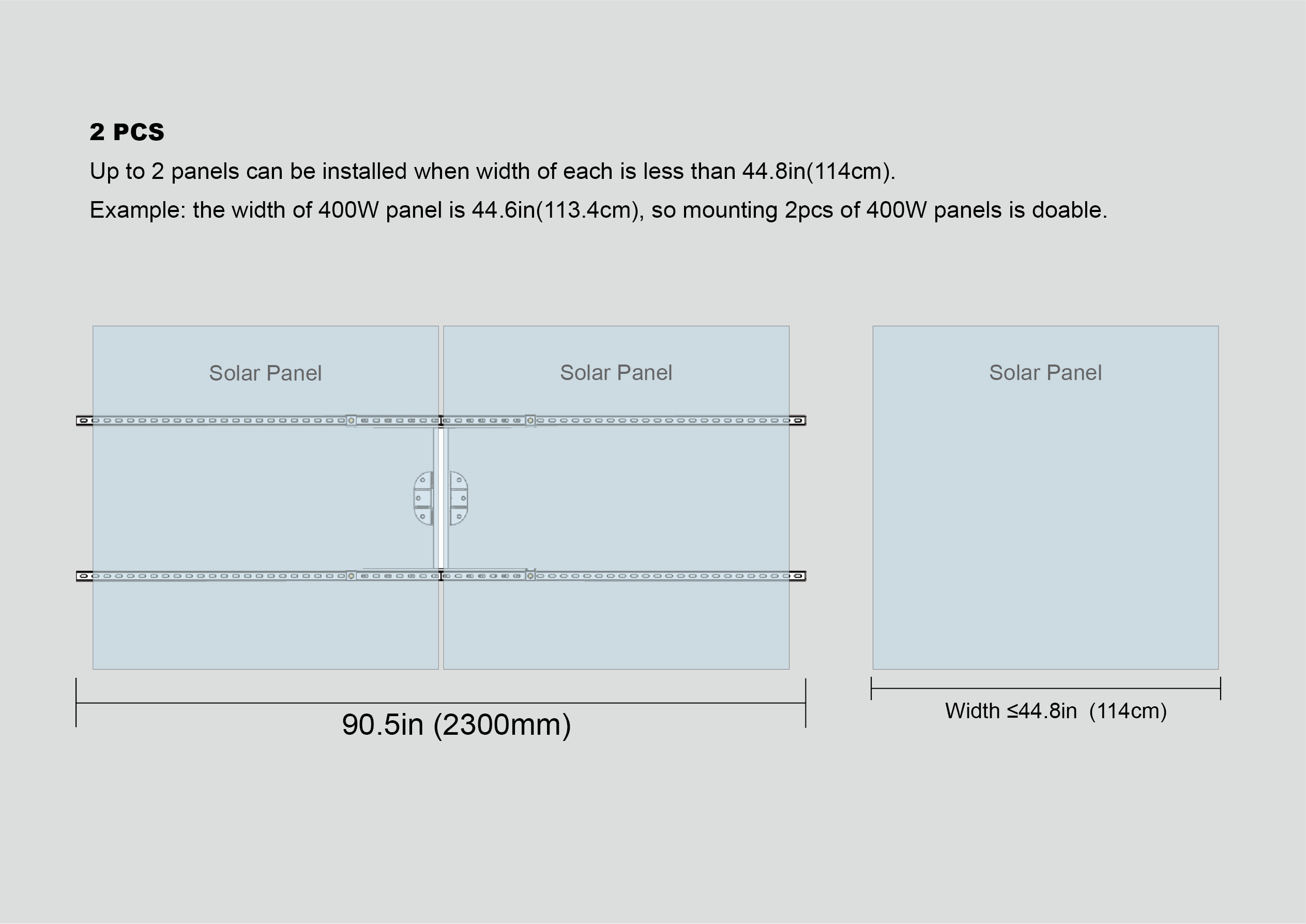

The single-axis tracking racking system is also suitable for different sizes of solar panels.Up to 4 panels can be installed when width of each is less than 22in.Up to 3 panels can be installed when width of each is less than 29.5in.Up to 2 panels can be installed when width of each is less than 44.8in.You can install the board according to the actual needs.

[Stability & installation]

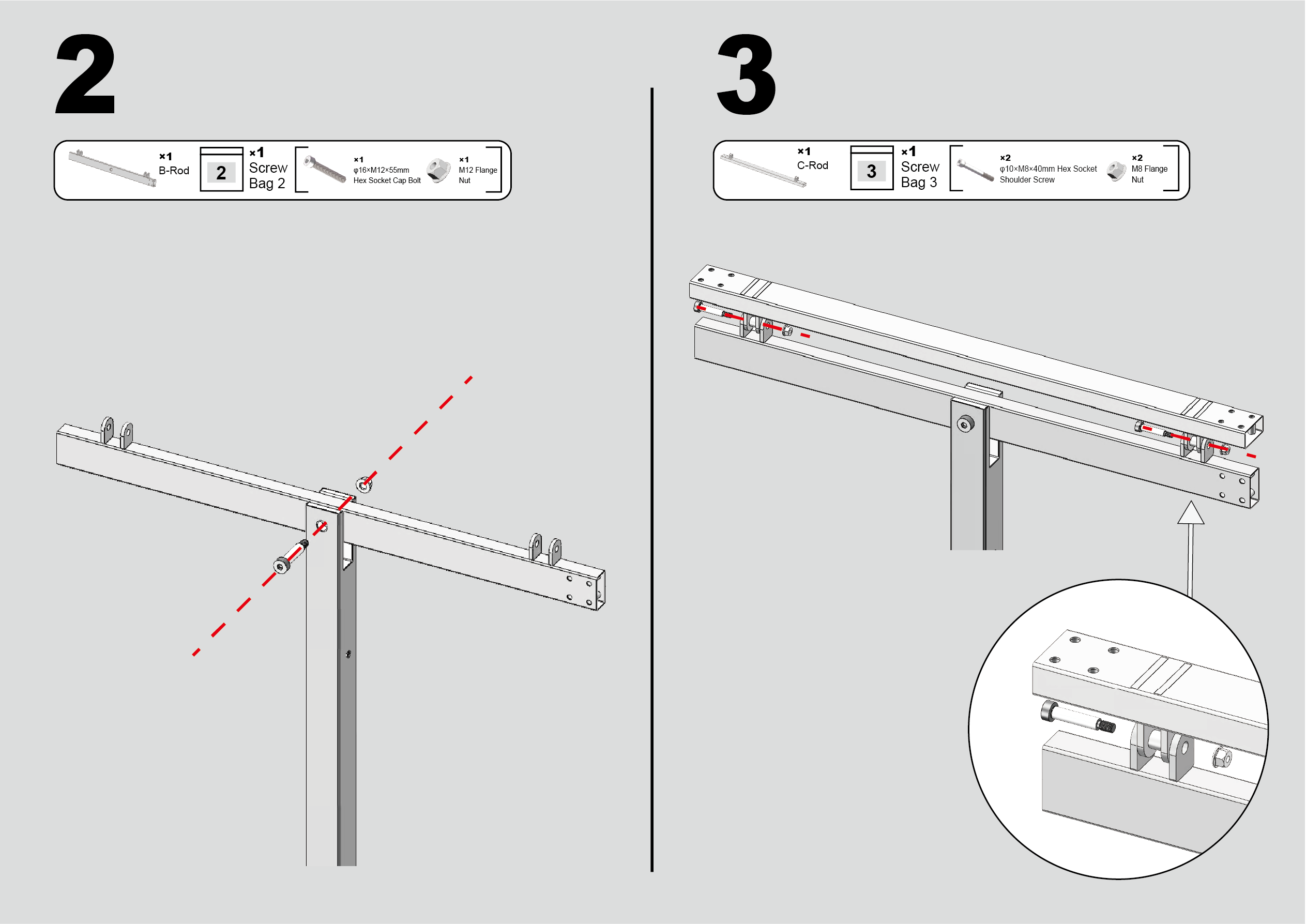

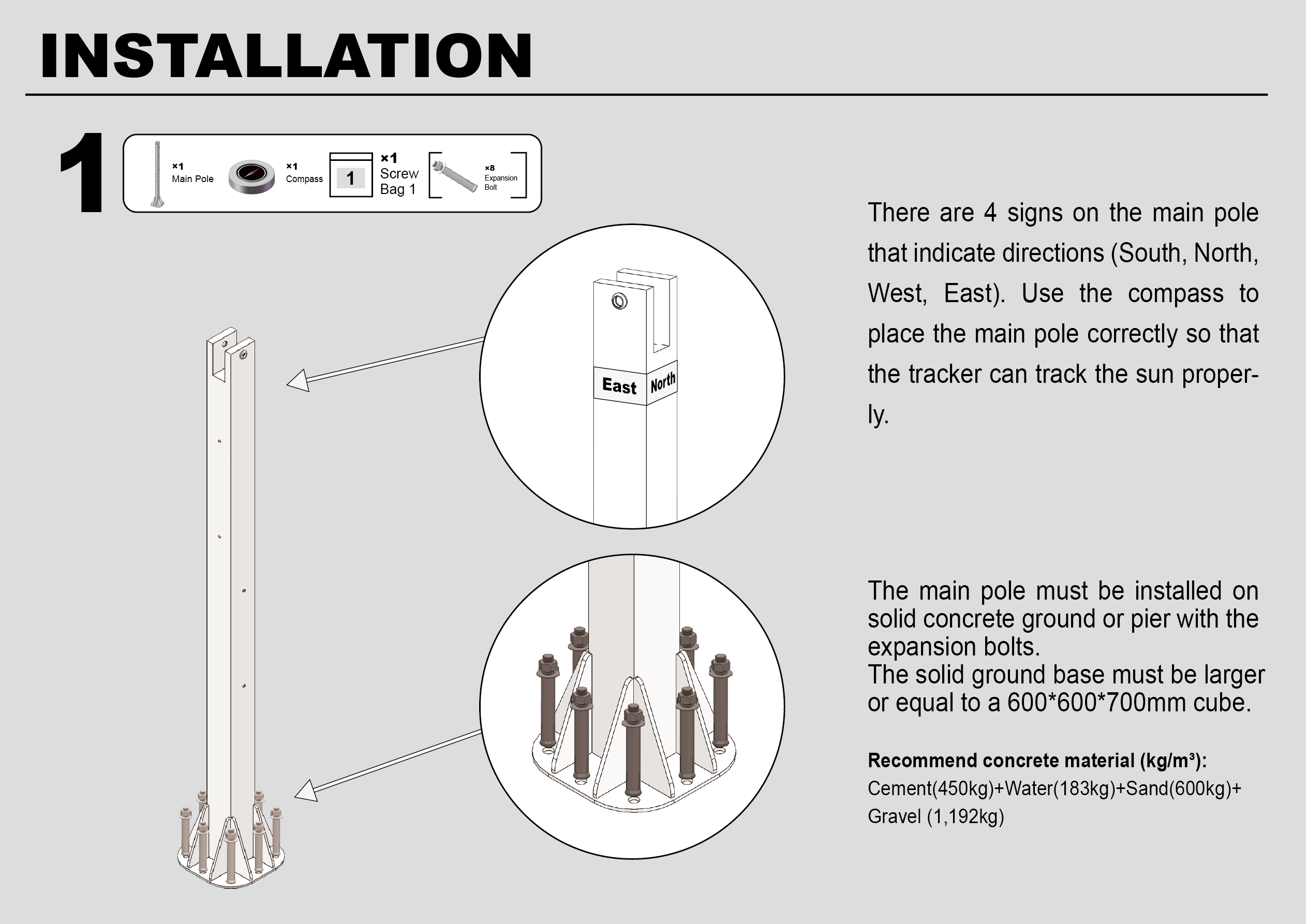

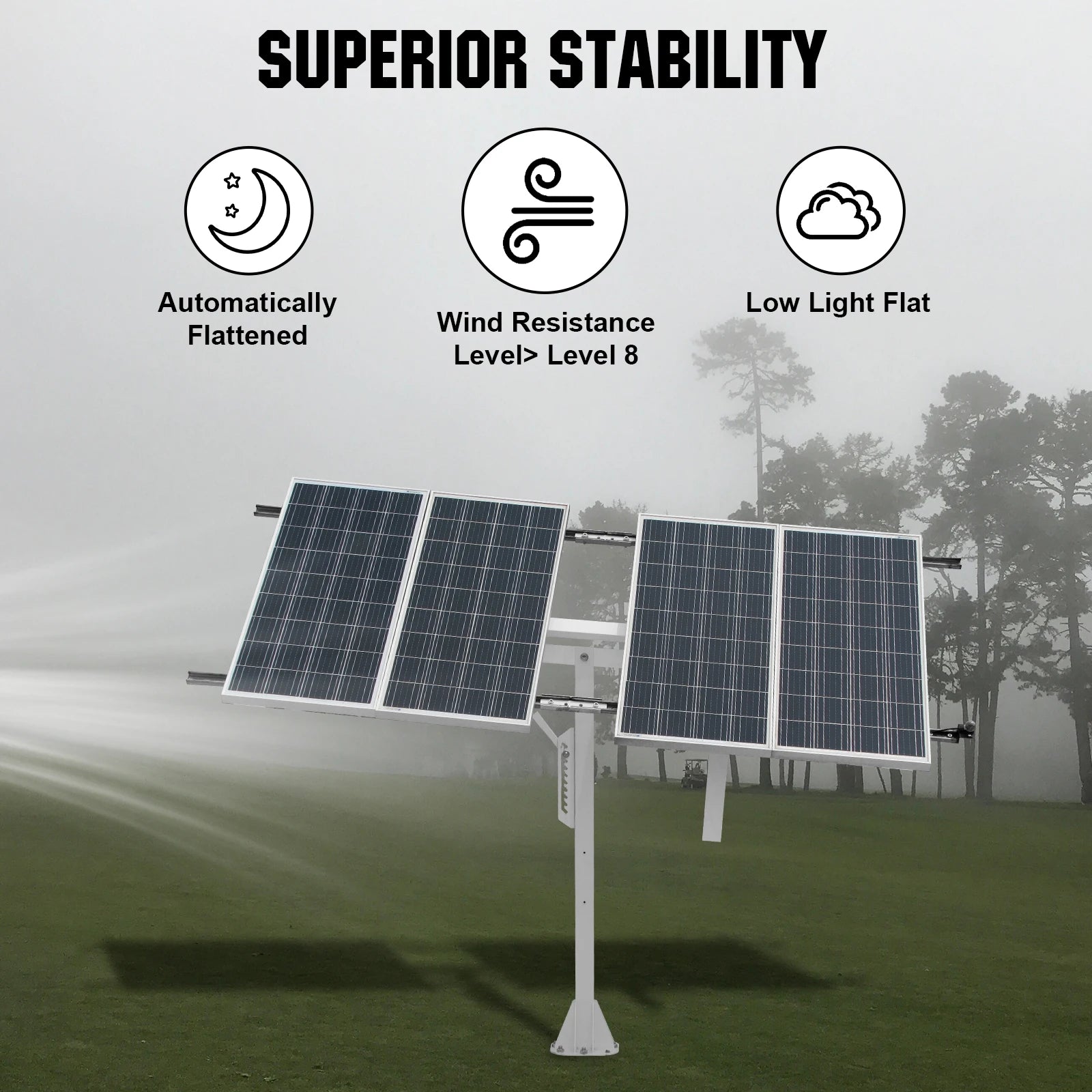

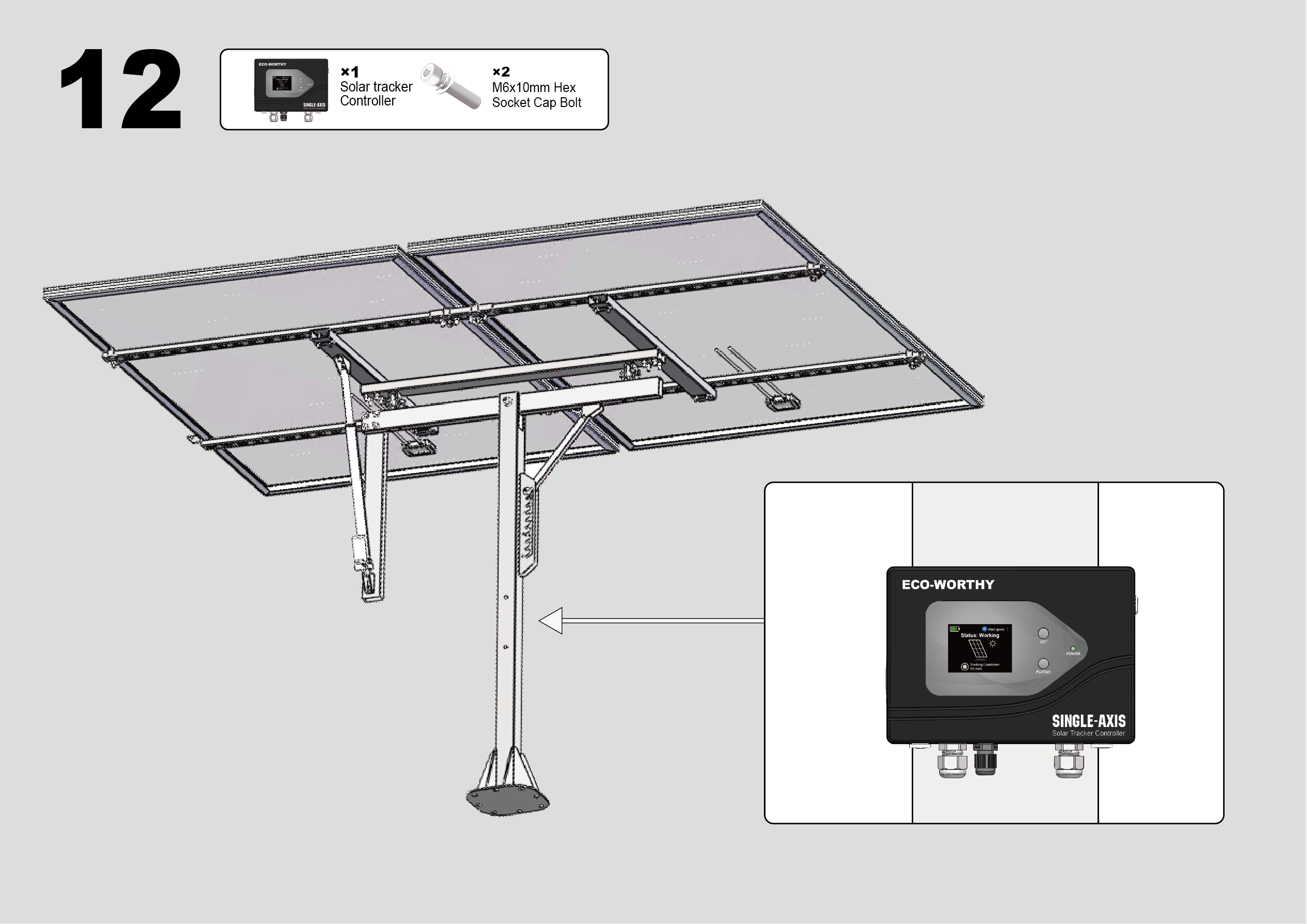

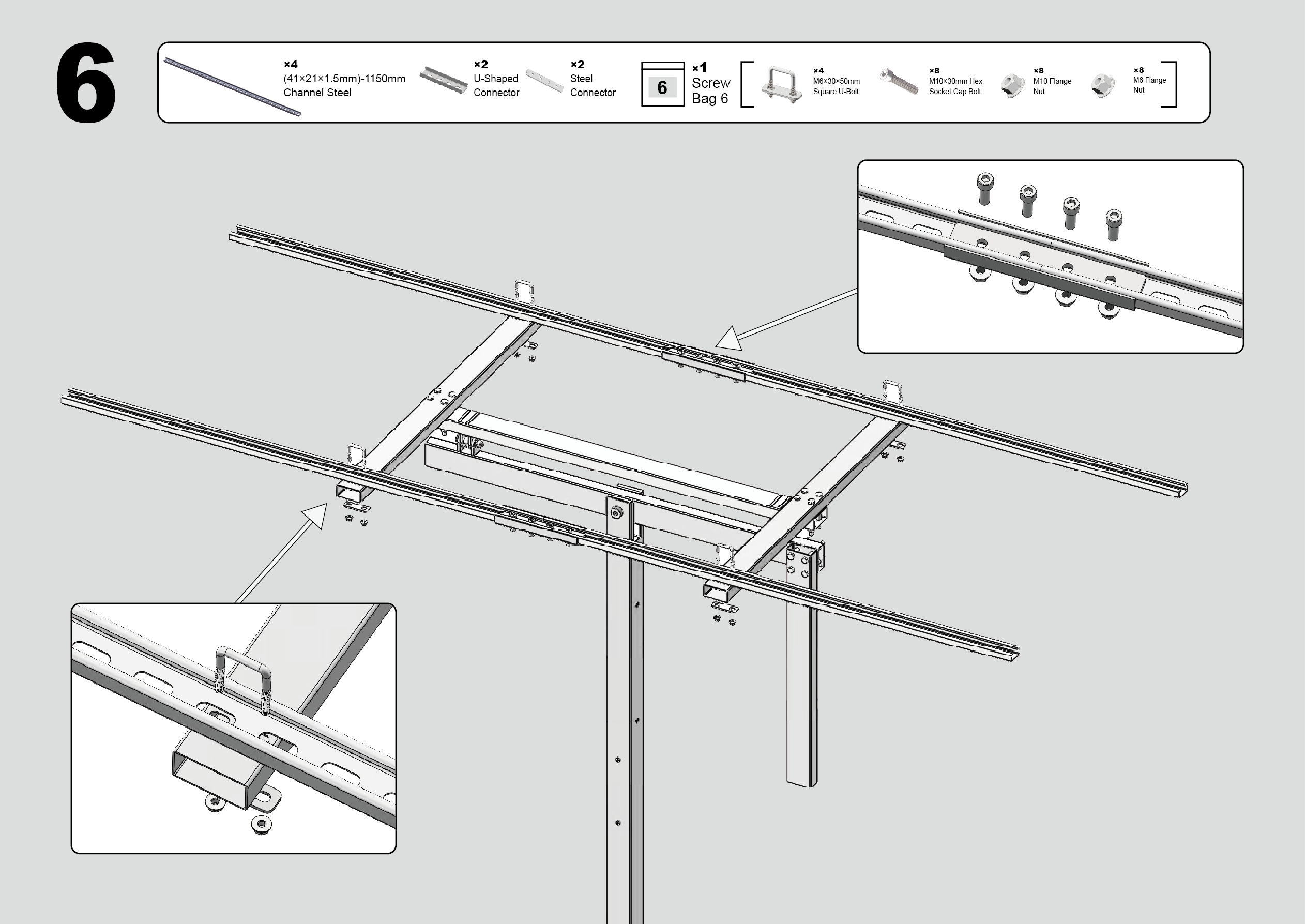

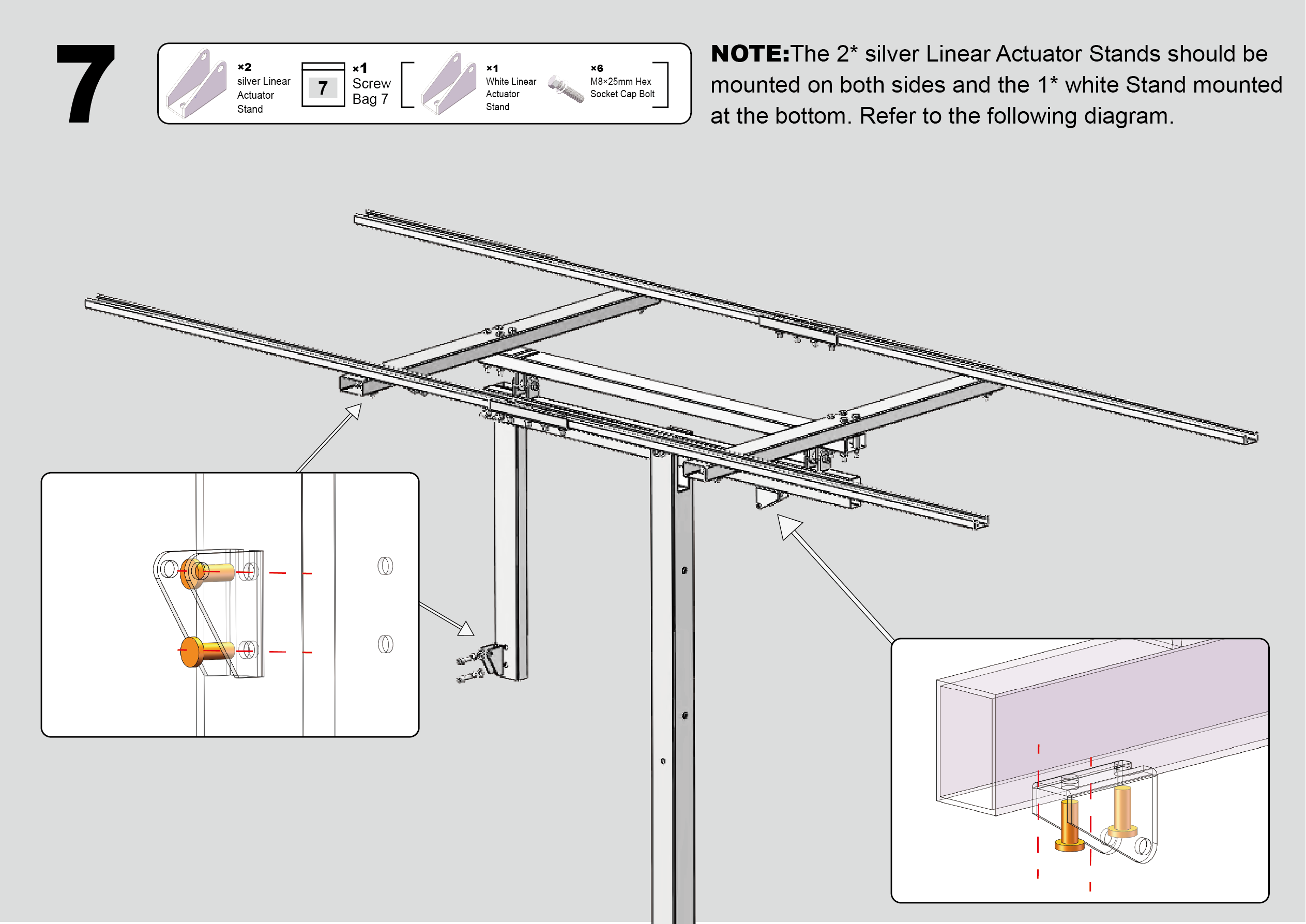

Stability of single-axis tracking mounts still deserves your attention.Wind resistance level >L8 and pressure resistance >5400PA are sufficient for most environmental conditions.In addition to , the installation is very easy and requires only 4 simple steps: ①Use expansion screws to fix the base② Connect the A-E rods and actuators to the main pole③Installing the Controller④Installation of solar panels.

[Easy to use]

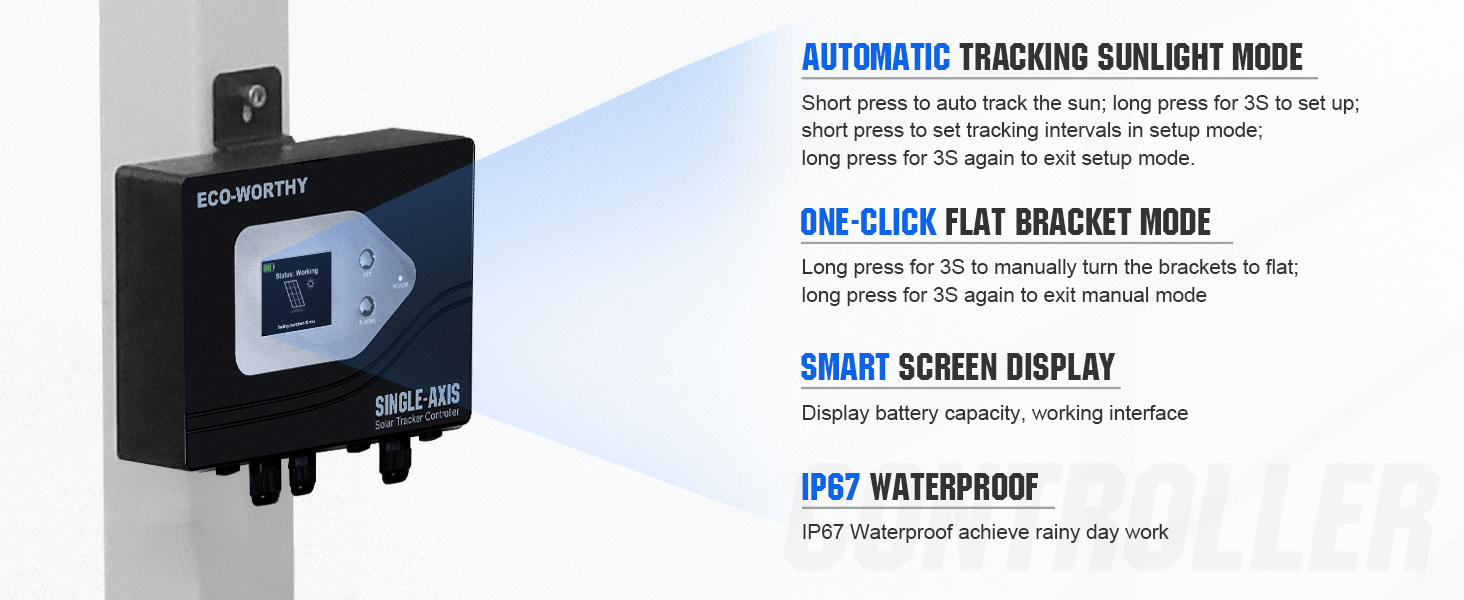

The setup is very easy, you only need to operate the controller to complete the control of the single axis tracking bracket system.SET Button-Automatically track the solar mode ,FLAT(M)Button-Automatic flat bracket mode.

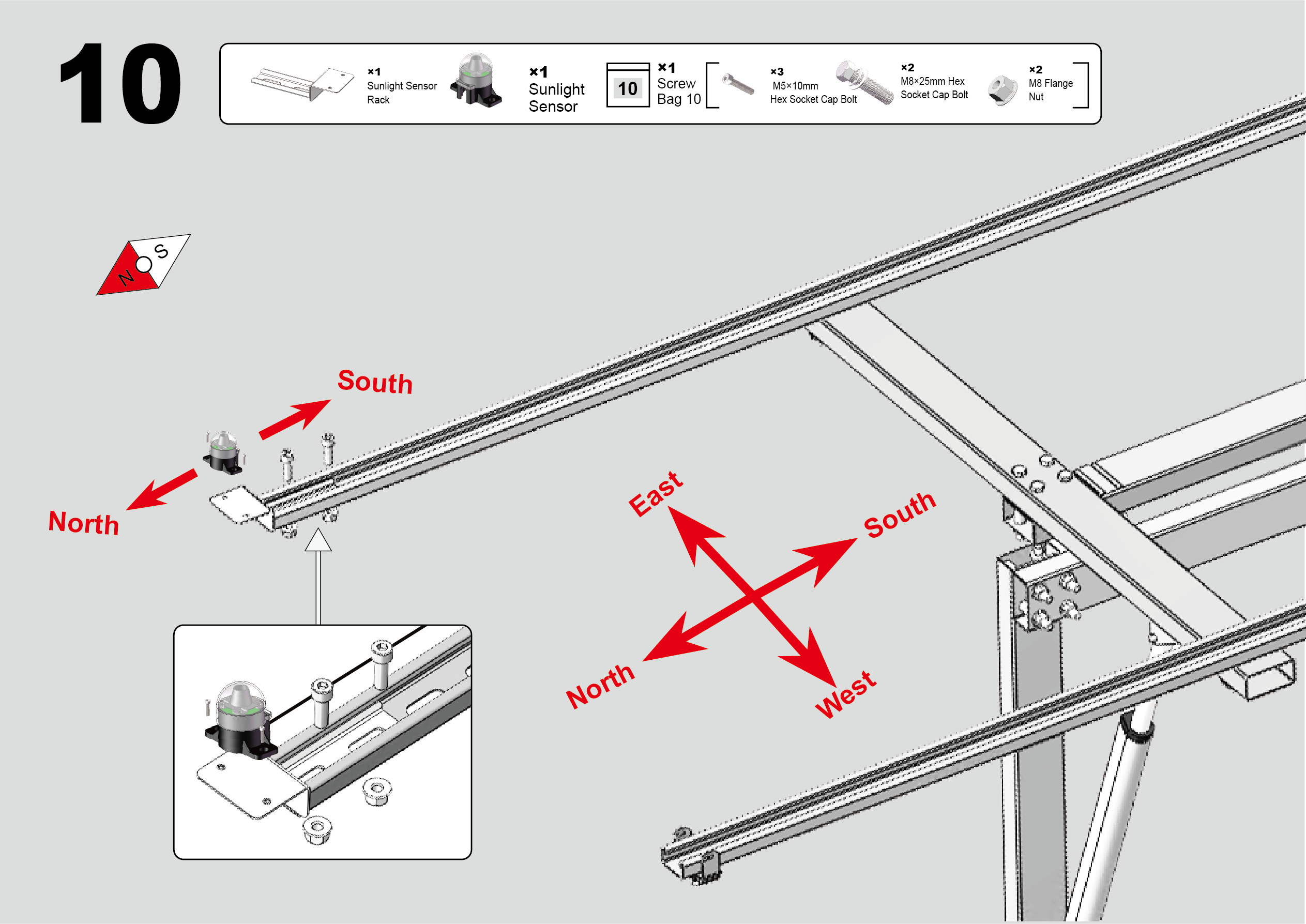

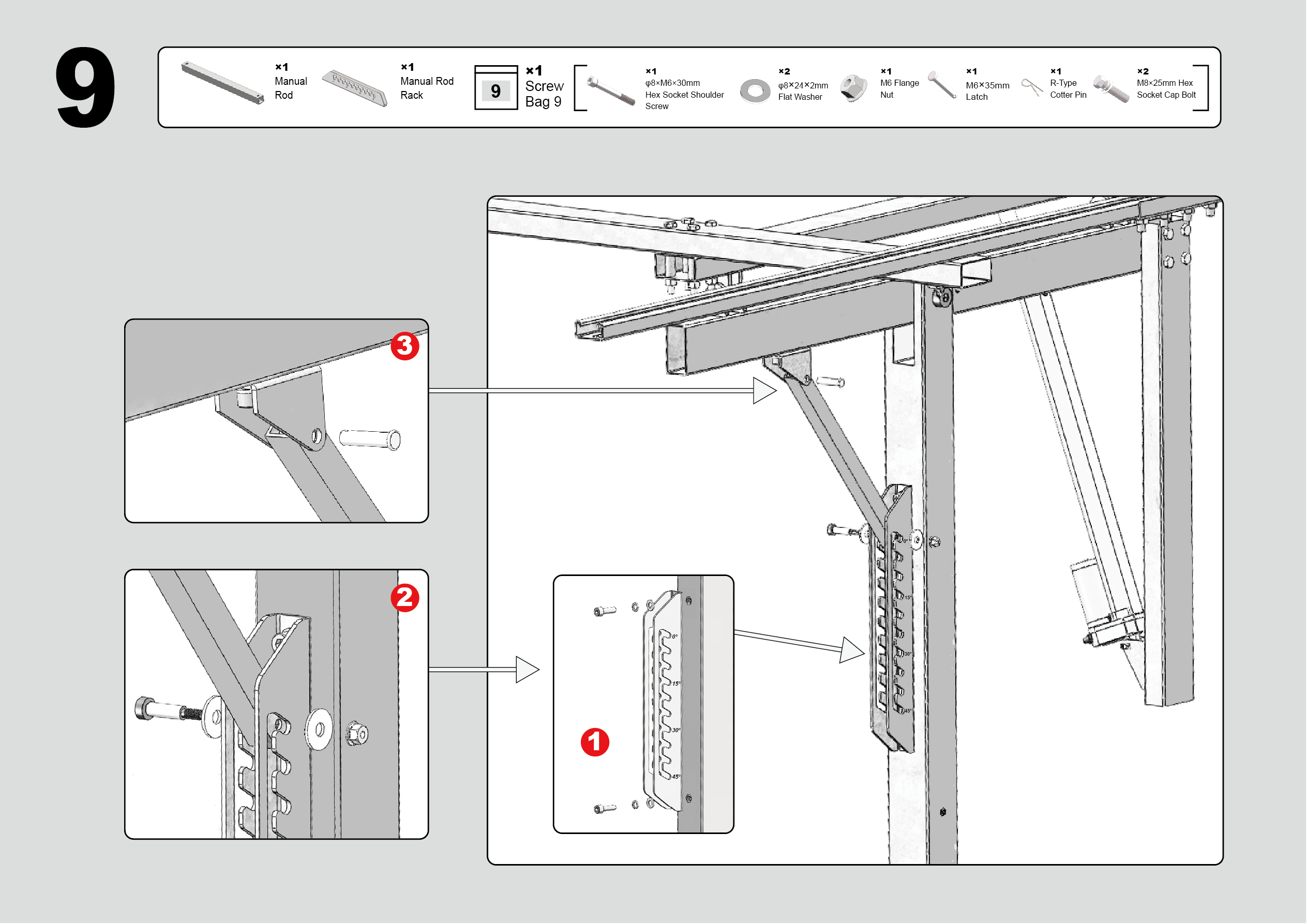

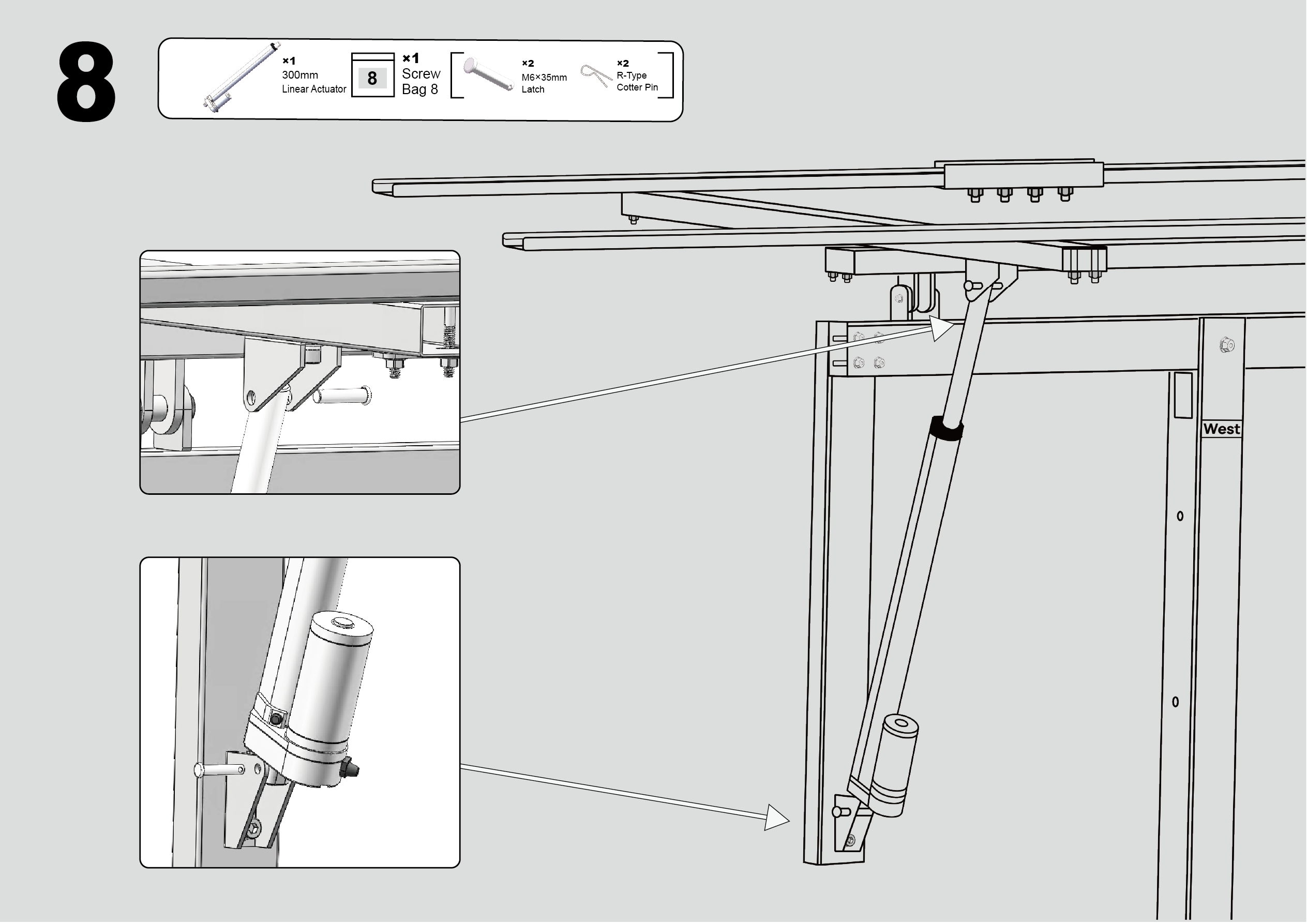

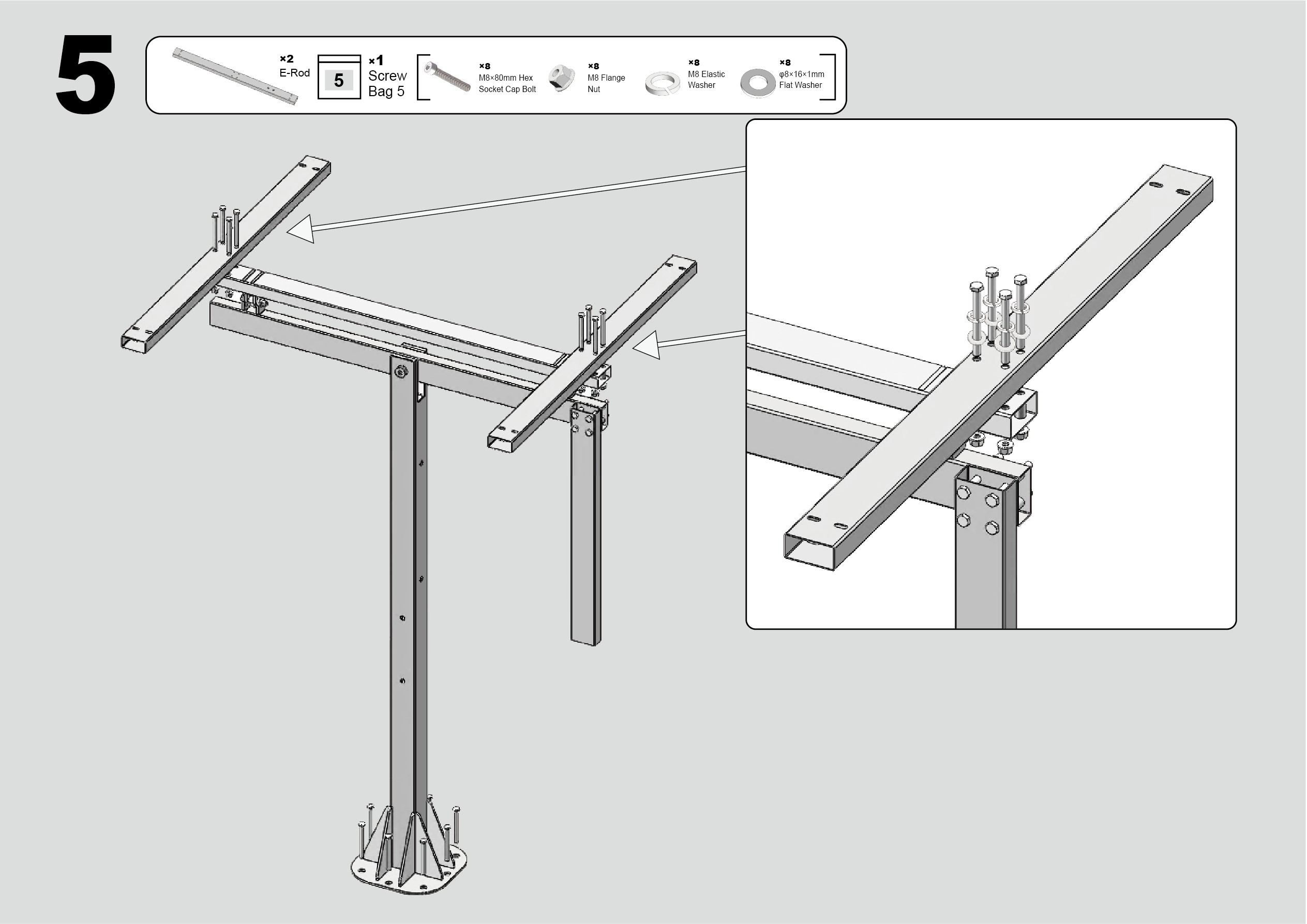

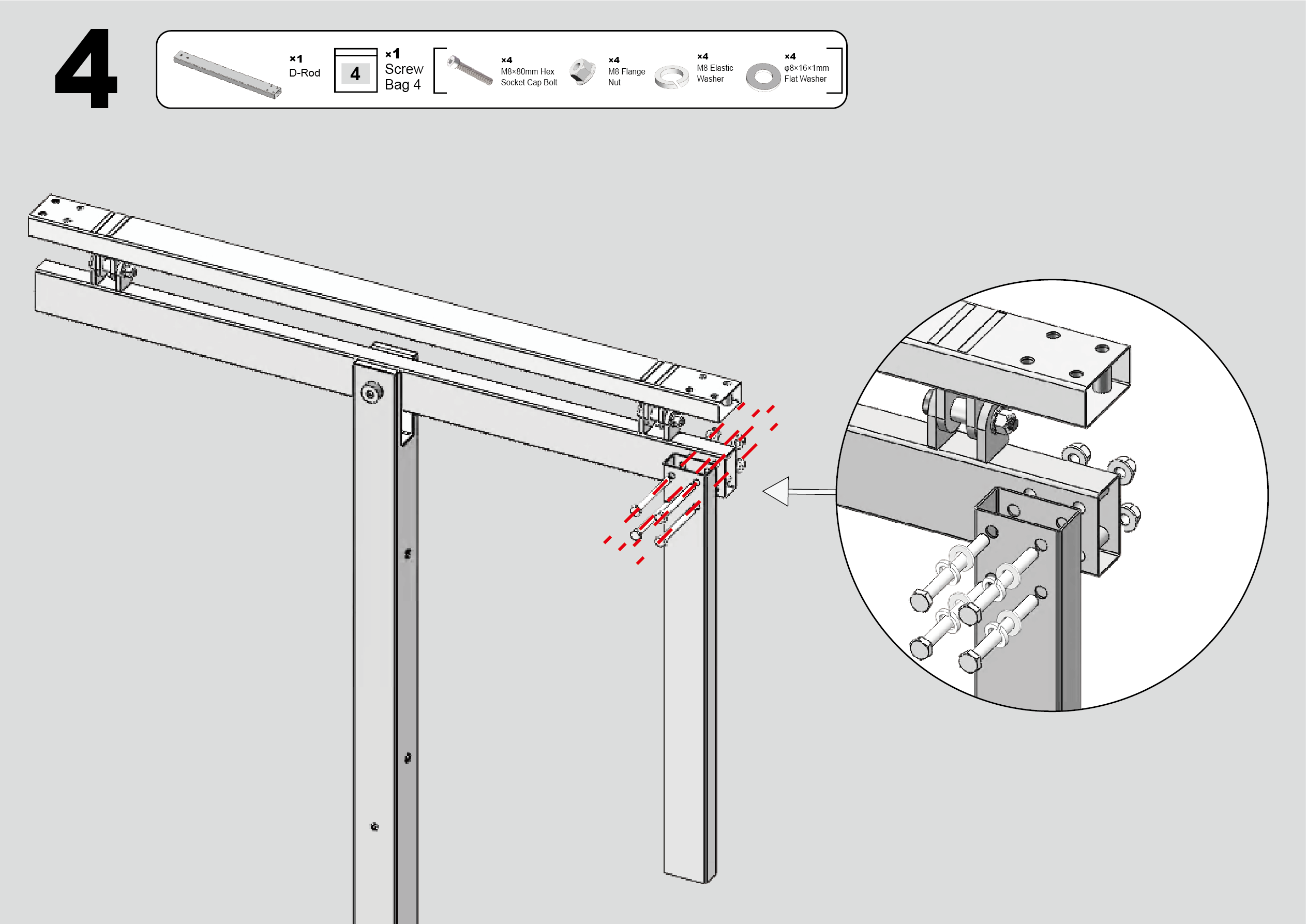

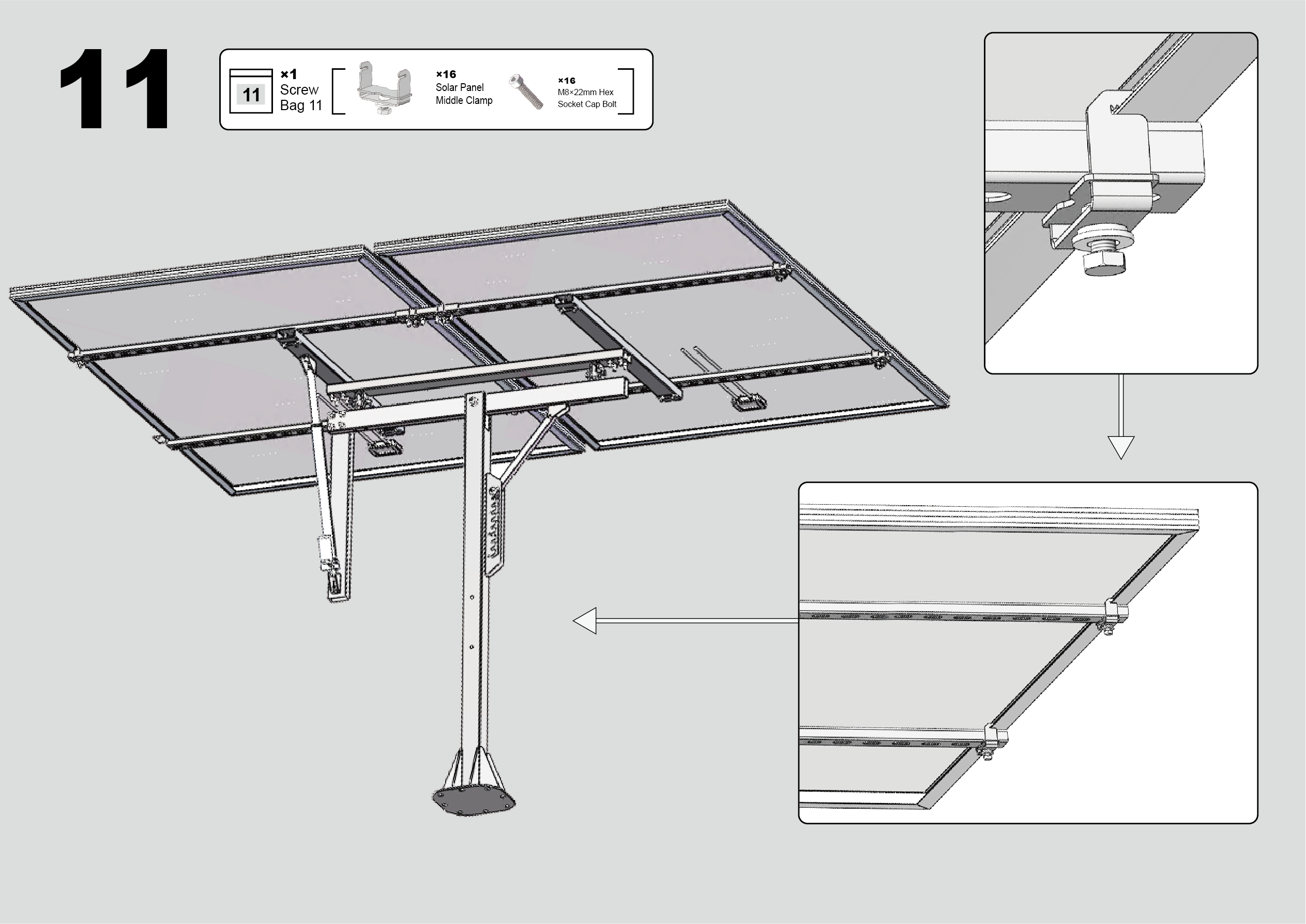

Detailed Installation Steps
