SPECIFICATIONS





Certification: NONE

Control Box Model: Cfs-D24

Does it include batteries: Not included

High-concerned chemical: None

Ip Level: Ip68

Max Open Circuit Voltage: ≤50V

Model: 3Sbl1.5/80-D24/210

Number of Pieces: 1

Power Source: Other

Rated Power: 210W

Single Panel Power: 200W

Structure: Screw Pump

Voltage: 18-37V



Description

If you are engaged in agriculture or farming, then this deep well submersible pump will be your ideal working assistant. it is made of high-quality stainless steel and a powerful 210w motor and can supply water for your farmland, livestock, and so on. the water pump works through solar energy, allowing you to bathe in an environment of green and clean energy.



Key features

Sturdy and durable It consists of high-quality Stainless steel and Aluminum with a polishing treatment to make the product Rust-resistant, corrosion-resistant, wear-resistant And sturdy, which can better maintain long-term beauty and practicality.



Labor saving: labor saving Solar water pumping system is fully automatic operation, without supervision. it runs automatically when the sun rises and is easy to maintain, so you can go do other things.



Dual power supply: dual power supply We recommend that the solar water pump be powered by solar energy, which is energy-saving and environmentally friendly. additionally, it can also be powered by batteries to work on cloudy days or at night.



Powerful motors: Equipped with a 210w Brushless Dc water pump motor and 0.75-inch spout, it has a maximum flow rate of up to 396.26 gal/h and a maximum head of up to 262.47 ft, bringing you an efficient water supply experience!



Mppt technology: It is driven by the latest mppt technology to ensure maximum flow in most light conditions. it also prevents the submersible pump from frequently starting, overheating, and drying out in low-light conditions.





High safety: It has intelligent water shortage protection and thermal protection functions, when there is no water in the well, the pump automatically stops working, while the ip68 protection level ensures your safety when working.



Simple installation It comes with detailed english instructions that can help you step by step. in addition, the package contains the necessary accessories for installation, so you can easily install and use it yourself





Details.

Long power cord: The 19.69ft power cord offers convenience and enhances the safety of use.





Application

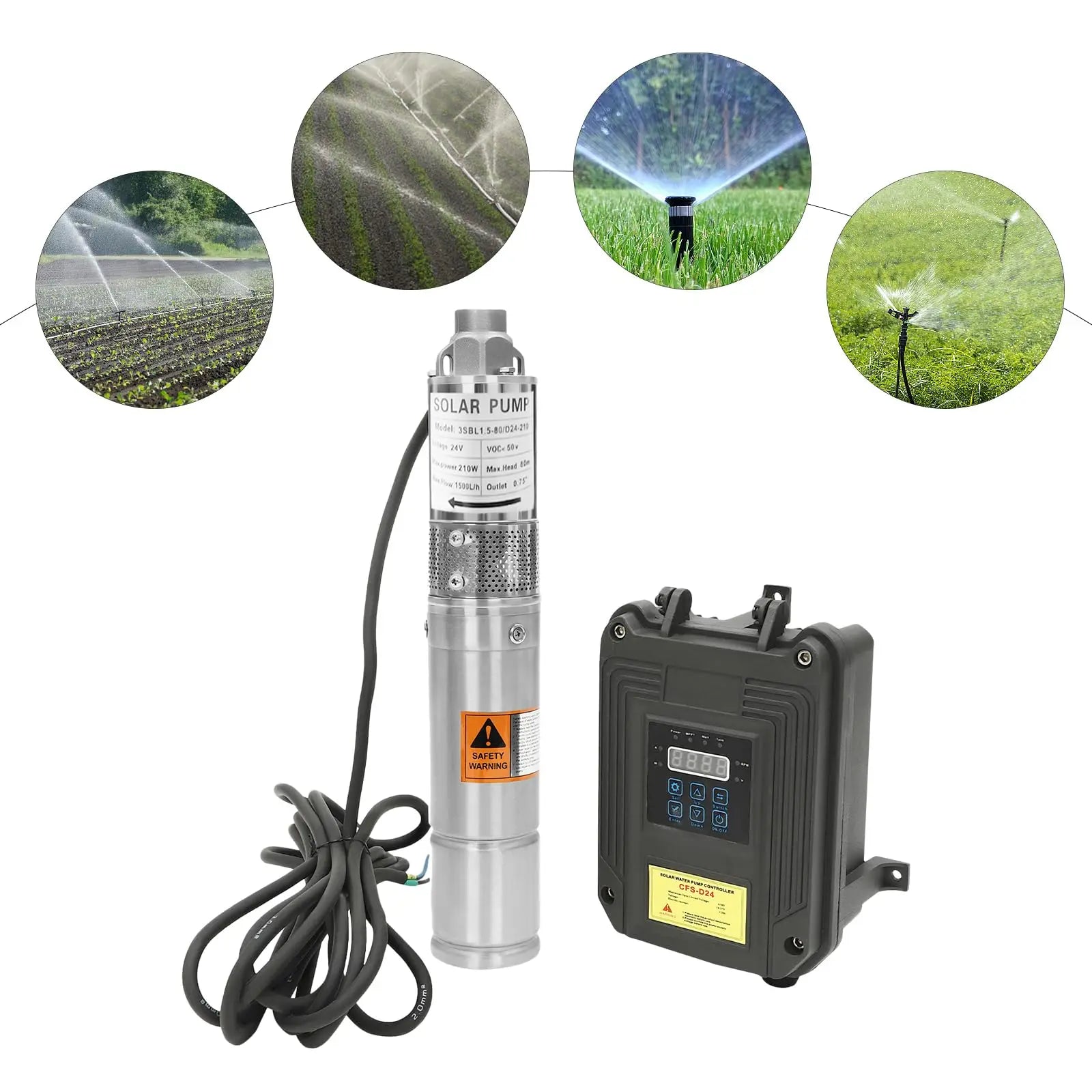

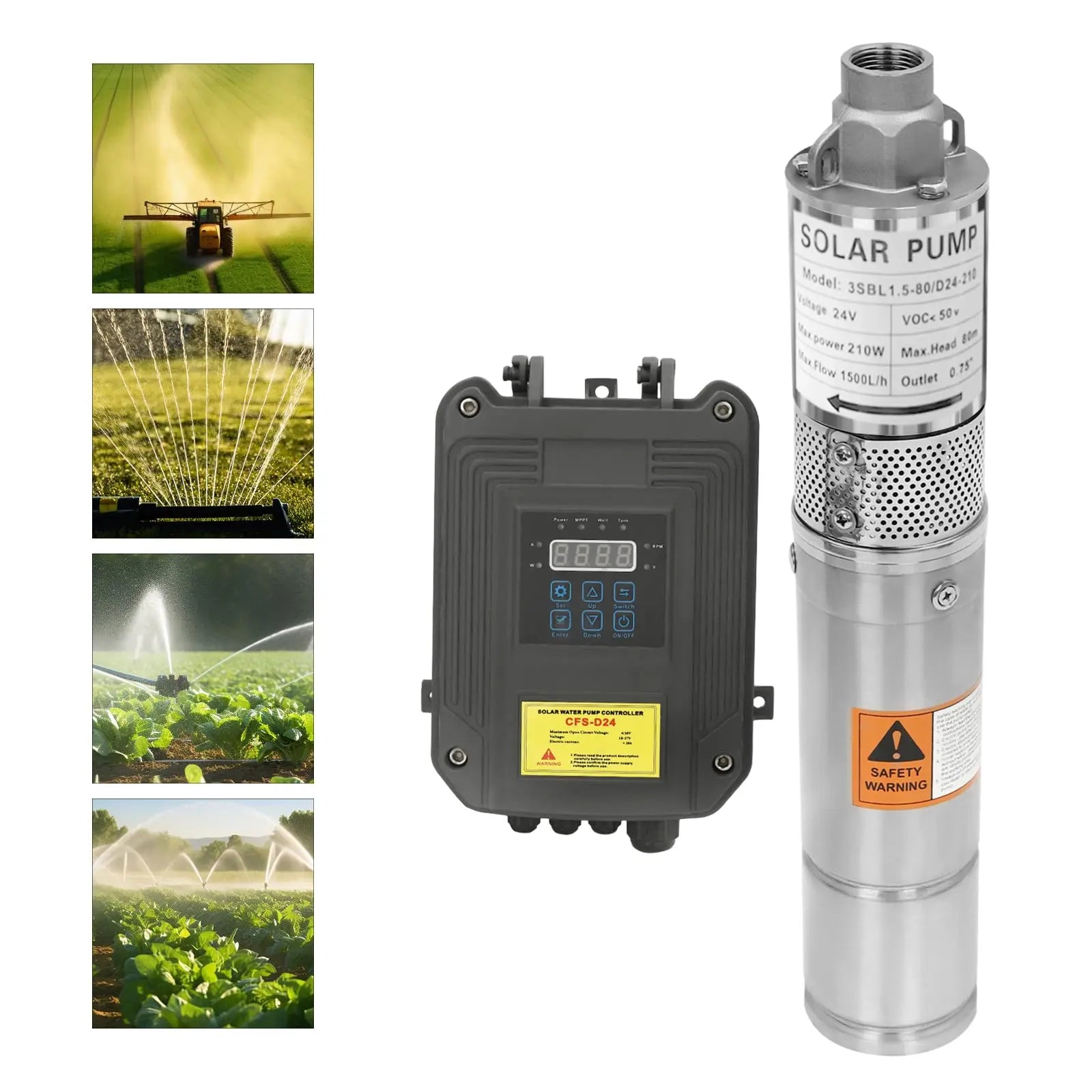

It can be used for well water extraction, farmland irrigation, breeding water, garden watering, river water extraction, domestic water supply and so on.



Specifications

Material: Stainless steel and aAluminum

Model: 3sbl1.5/80-d24/210

Shape: cylinder

Process: polishing

Color: silver and black

Assembly required: yes

Number of pieces: 1

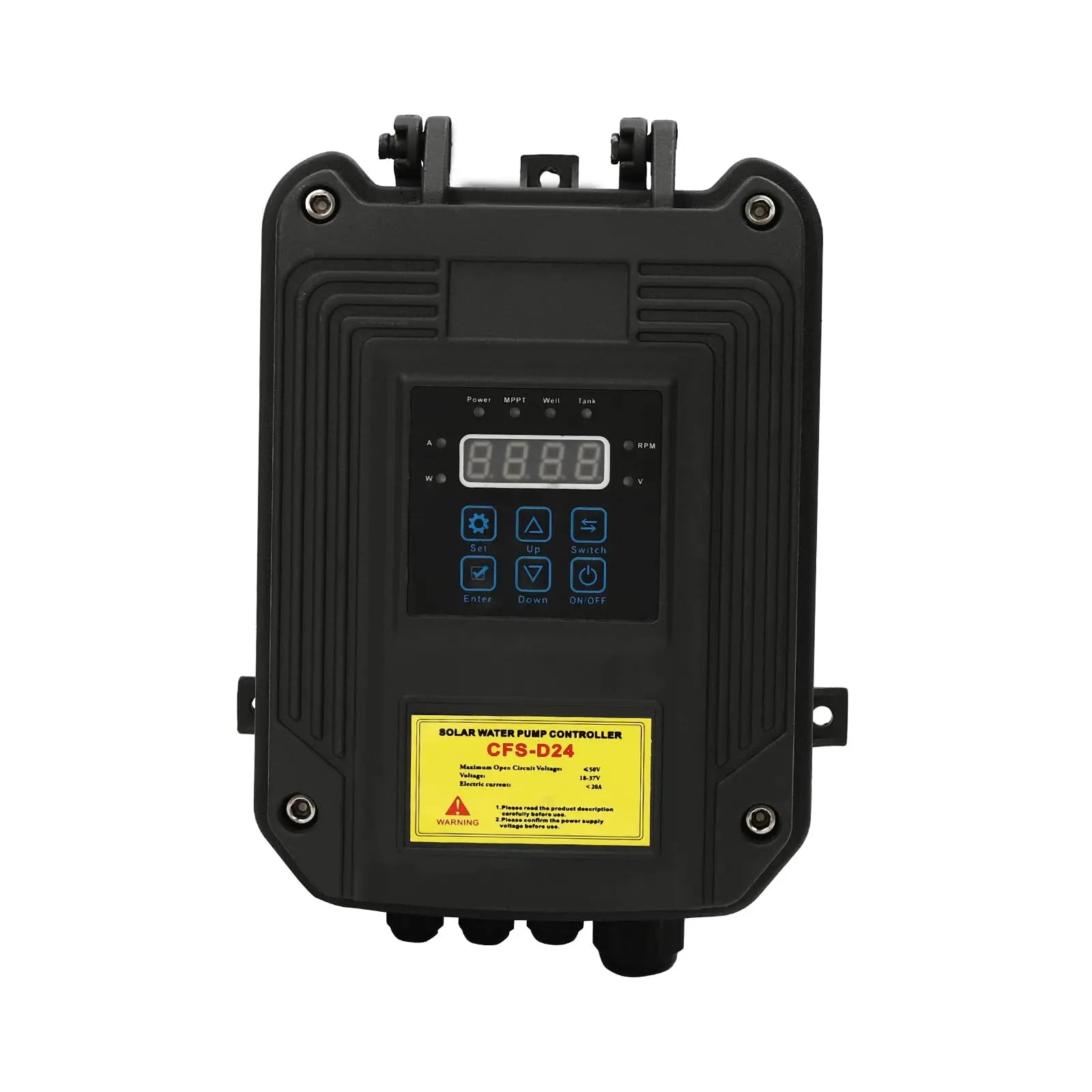

Control box model: cfs-d24

Voltage: 18–37v

Max. open circuit voltage: ≤50v

Electric current: <20a

Rated power: 210w

Single panel power: 200w

Working voltage: 36v.

Voltage: 24v.

Ip rating: ip68

Max. flow: 1500l396.26 gal/ h

Max. head: 80m/262.47ft

Max. temperature of water handled: 35°c/95°f

Outlet diameter: 19mm/0.75 inch

Solar panels: 2*200w(not included)

Gross weight: 7.5kg / 16.53 lbs

Power cord length: 6m/19.69ft

Package size: 43*30*14cm/16.93*11.81*5.51inch

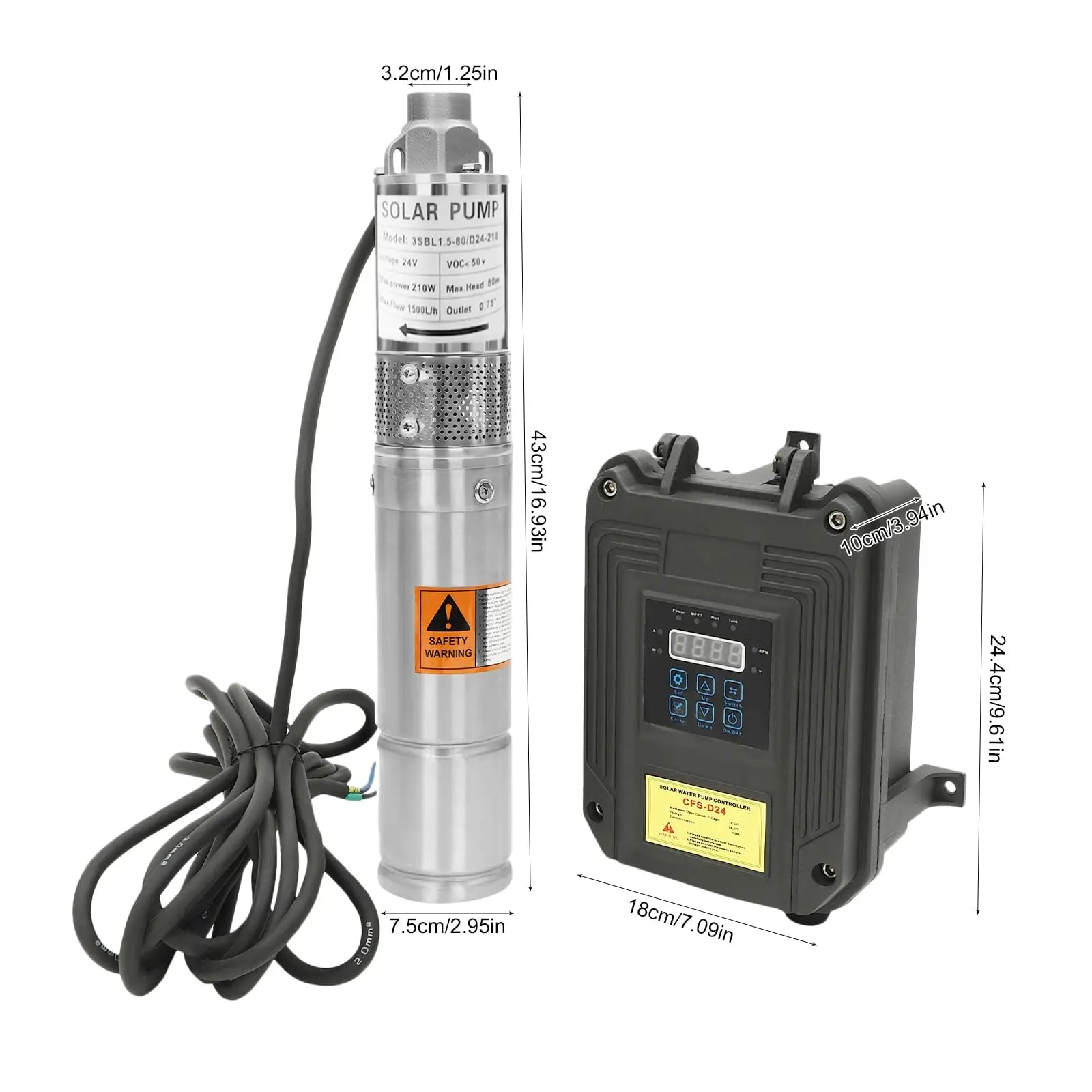

Well pump size (d*h): 7.5*43cm/2.95*16.93inch

Control box size: 18*10*24.4cm/ 7.09*3.94*9.61inch

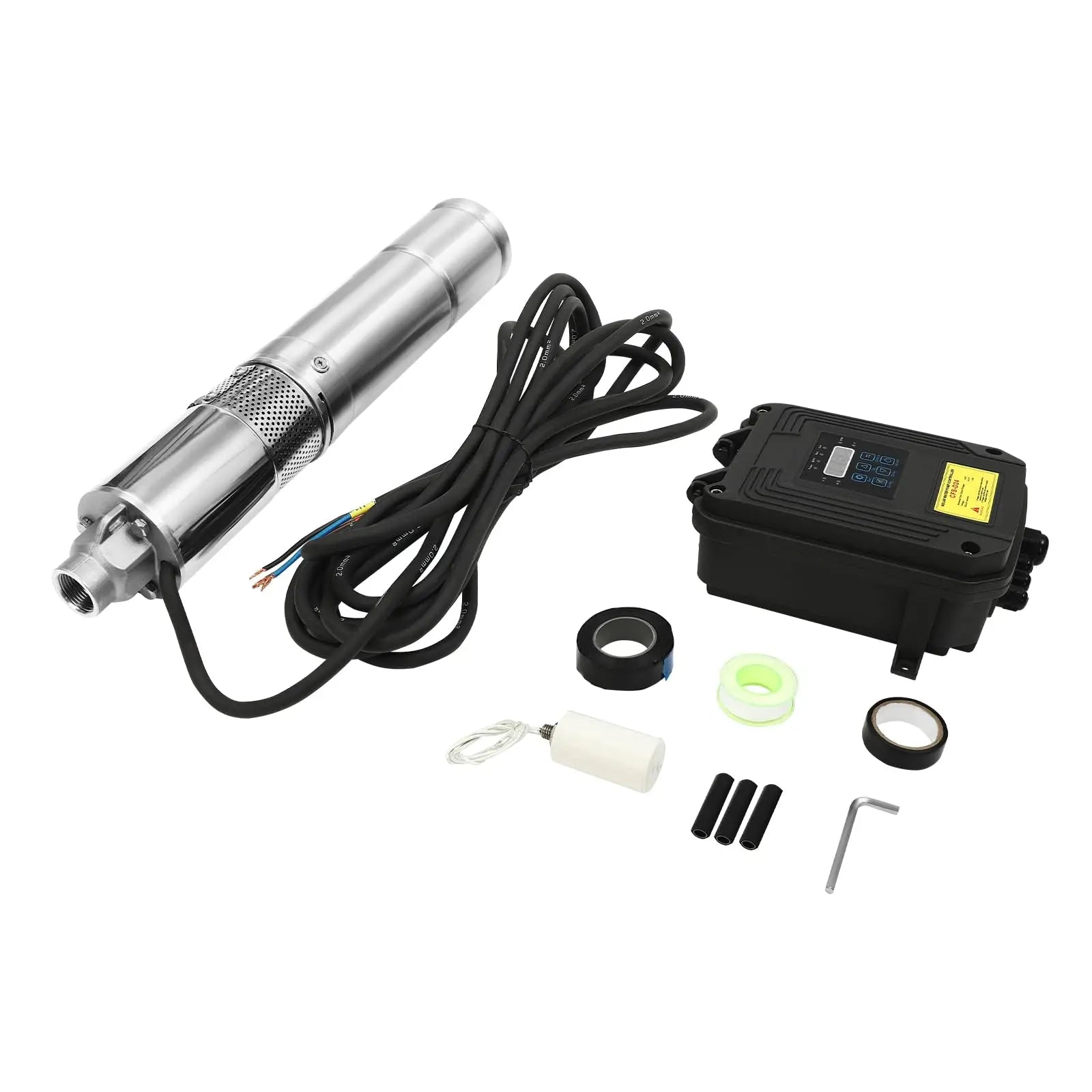

Package included:

1* Deep well submersible pumps

1* control box

2*tapes

1* english manual

Other accessories for assembly



Notes

1. Please note that the controller was set up before delivery. in order to ensure normal use, do not change the settings of the controller unless necessary.

2. The pump stops working automatically without water in the well and automatically starts working 15-30 minutes later.

3. Please note that the product's working condition should be under the whole horizontal plane.

4. Please strictly follow the instructions for use and installation, and pay attention to the safety precautions inside, and confirm the power supply voltage before use.

5. The electric pump must be grounded reliably, pay attention to your safety, and an electric shock protector (not included) must be installed to avoid electric shock.

6. Please never operate the electric pump without water, people and livestock are strictly prohibited from accessing the working area.

7. Please cut off the power supply before you repair or clean the pump. the product does not include two solar panels.

8. Please allow for slight color variations due to lighting during photography and a 1-3cm discrepancy due to manual measurement. kindly ensure you are comfortable with these minor variations before placing your order.
