SPECIFICATIONS

Brand Name: Bymaocar

Color: Orange

High-concerned chemical: None

Material: Manganese Steel, Rubber

Origin: Mainland China

Power Type: Gasoline

Description

65cc 2-Cycle Gas Powered Chainsaw 24-Inch Guide Bar 3.4KW Gasoline Power Chain Saws with Top Handle Tree Trimming Log Cutting

Key Features

⚡High efficiency: The 2-stoke engine with 65cc displacement, #rpm high speed, and 3.4KW high power, the 24" guide chain, and the carburetor with the function of atomizing fuel help this machine keep normal and economical operation, reduce emissions, achieve fast cutting, thus providing excellent performance(about 28.33" cutting diameter).

🚀Easy to Start: You can easily and quickly start this machine by pulling the drawstring 2-3 times, greatly saving you  time and effort.

❄️Good Heat Dissipation:The heat-sink holes on the machine ensure a good heat dissipation effect, which can effectively avoid excessive body temperature and internal oil temperature, thereby extending the service life of the machine.

Package Included

1x Gas Chainsaw

1 Pair x Goggles

1 Pair x Gloves

1x Funnel

1x Guide Bar

1x  Guide Bar Cover

1x Chain

1x Mixing Pot

1x English Manual

All Accessories for Assembly

Details

🛡️Guide Bar Cover: It allows for convenient storage of the guide bar when not in use and protects it well.

🤝Tool Bag: You can put the equipped tools into the tool bag to avoid losing them while protecting the tools well to extend their service life.

🔩Fuel Tanks: The 26oz fuel tank, 14oz chain fuel tank, and equipped translucent mixing pot allow for large capacity, a convenient mixture of fuels, and long-term use without frequent filling.

📦Convenient Tensioner:It ensures accurate and convenient adjustment of the chain tension.

Application

It is suitable forforest harvesting, cutting wood, pruning branches, gardening, home woodworking, bamboo sawing, logging, light felling, DIY crafts, ranches, farms, and so on to meet different needs

Starting Method:

1. Fill fuel and chain oil tanks respectively,and tighten the caps securely.

2. Put the switch to "I" position

3. While holding the throttle lever together with the throttle interlock, push in the side throttle lock button and release the throttle lever to hold it at the starting position.

4. Pull out the choke knob to the closed position.

5. While holding the saw unit securely on the ground,pull the starter rope vigorously.

6. When engine has ignited first ,push in the choke knob and pull the starter again to start the engine

7. Allow the engine to warm up with the throttle lever pulled slightly.

How to Assemble the Chainsaw:

1. Pull the guard towards the front handle to check that the chain brake is not on.

2.  Loosen the nuts and remove the chain cover.

3. Install the attached spike to the power unit.

4. Gear the chain to the sprocket and, while fitting the saw chain around the guide bar, mount the guide bar to the power unit. Adjust the position of chain tensioner nut on the chain cover to the lower hole of guide bar.

Specifications

Material: Manganese Steel, Rubber

Power Type: Gasoline

Color: Orange

Process: Quenching

Assembly Required: Yes

Power Source: Gas Powered

Ignition System: Hand Pull Start

Engine Type: Single Cylinder, Air-cooled, 2-Stroke

Oil Mixture: 25:1(Gasoline: Oil)

Chain Length: 60.96cm/24inch

Displacement: 65cc

Tank Capacity: 0.77L/26oz

Idle Speed: 2800-3200 RPM (±200)

High Speed: 9500-12000 RPM

Chain Fuel Tank Capacity: 0.42L/14oz

Power: 3.4kw

Maximum Cutting Diameter: 58cm/28.33in

Net Weight: 8.5kg/18.74 1bs

Gross Weight: 9kg/19.841bs

Package Size: 56*26*38cm/22.05*10.24*14.96in

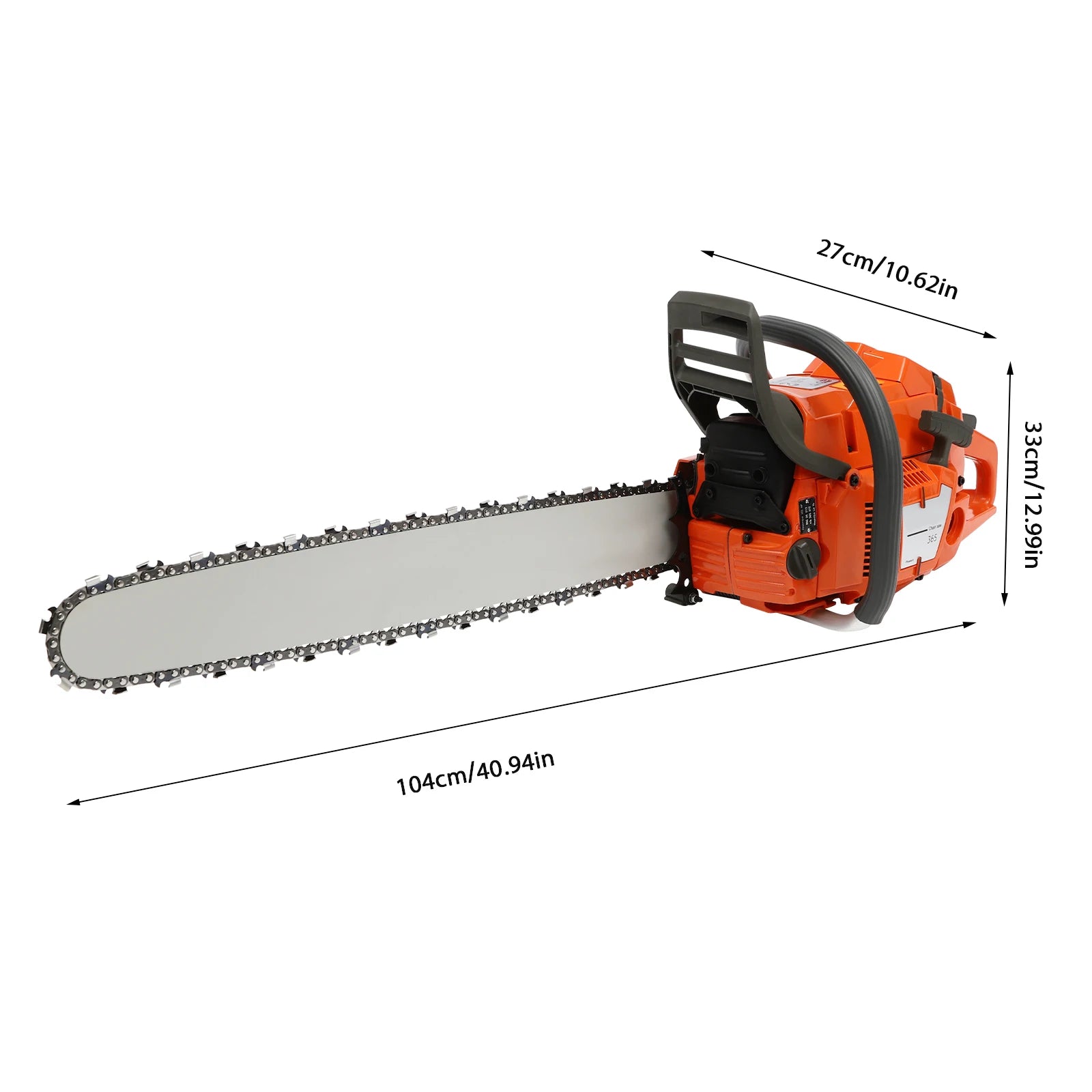

Product Size: 104*27*33cm/40.94*10.62*12.99in

Notes:

1. Please mix gasoline with oil at the ratio of 25:1. The oil mixing ratio should not be incorrect or biased. The chain oil tank must not be short of oil. Do not use inferior engine oil as a matching oil or chain lubricant.

2. Please perform necessary maintenance, dust cleaning, oil injection, etc. after each work.

3. Before using the chain saw, apply engine oil to the air filter to ensure the normal use of the machine.

4. Please read the English manual completely before installing. And pay particular attention to the safety instructions included.

5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
