SPECIFICATIONS

Application: Submersible

Brand Name: NONE

Certification: CE

Fuel: Electric

High-concerned chemical: None

Material: Stainless Steel

Power Source: Electric

Pressure: High Pressure

Shape: Cylinder Shape

Standard or Nonstandard: Standard

Structure: Submersible Pump

Treatment: Polish

Voltage: DC12V/24V

Description

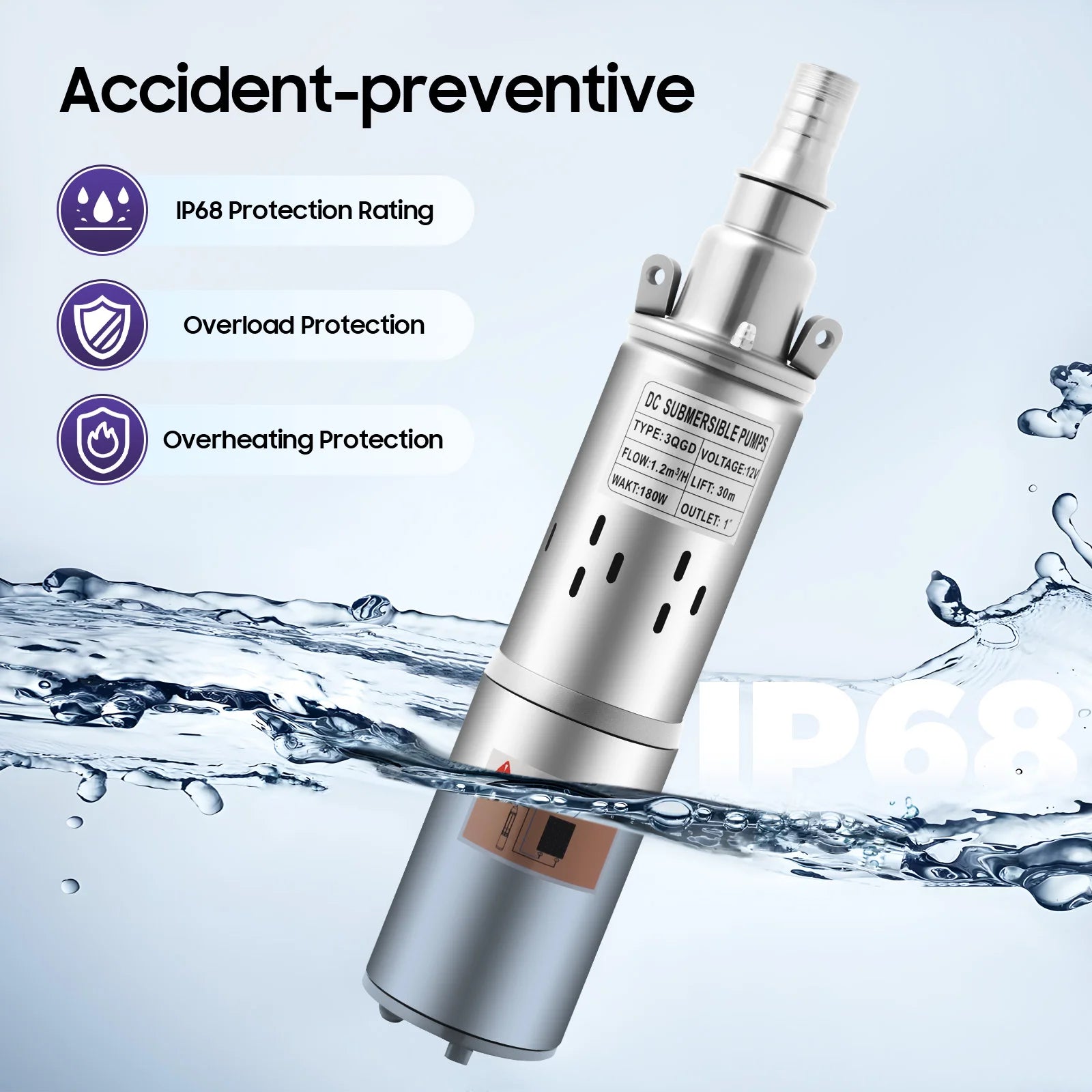

This water pump is precision made from high-grade stainless steel, and its excellent resistance to pressure and corrosion ensures that the product remains stable and less prone to deformation in extreme environments. The high power of 180W and 3000rpm allows for quick water pumping from rivers or reservoirs, providing plenty of power to achieve high-head irrigation in your garden or farm. This is a good choice to improve your irrigation efficiency.

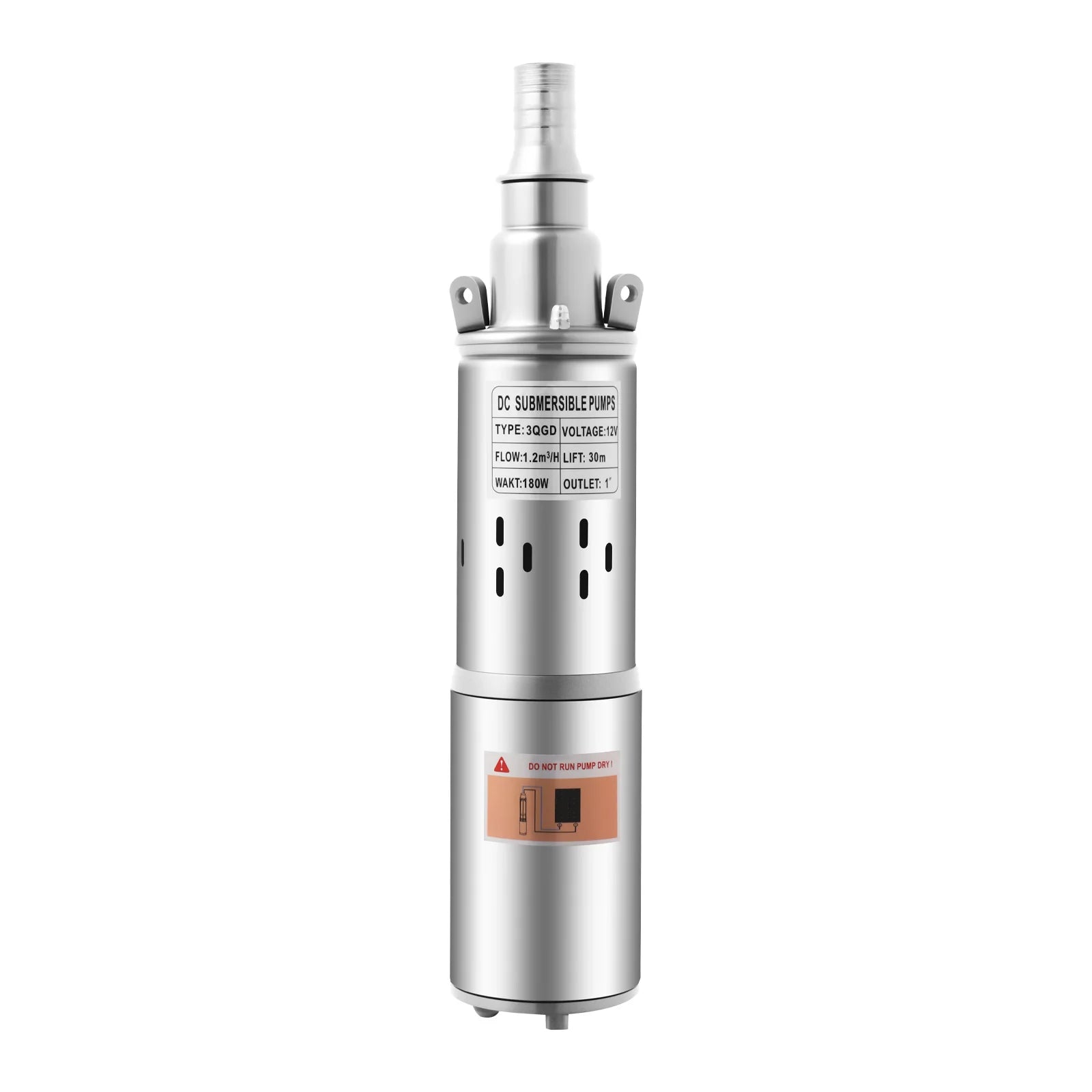

Specification OF 12V

Material: Stainless Steel, Copper

Color: Silver

Style: Modern

Assembly Required: No

Motor Type: Pure Copper Motor

Power Source: Corded Electric

Flow Rate: 1.2m³/263.96gal/H

Power: 180W

Lift: 30m/98.43ft

Noise: 0-30 dB

Voltage: 12V

Speed: 3000 rpm

Noise: 0-30dB

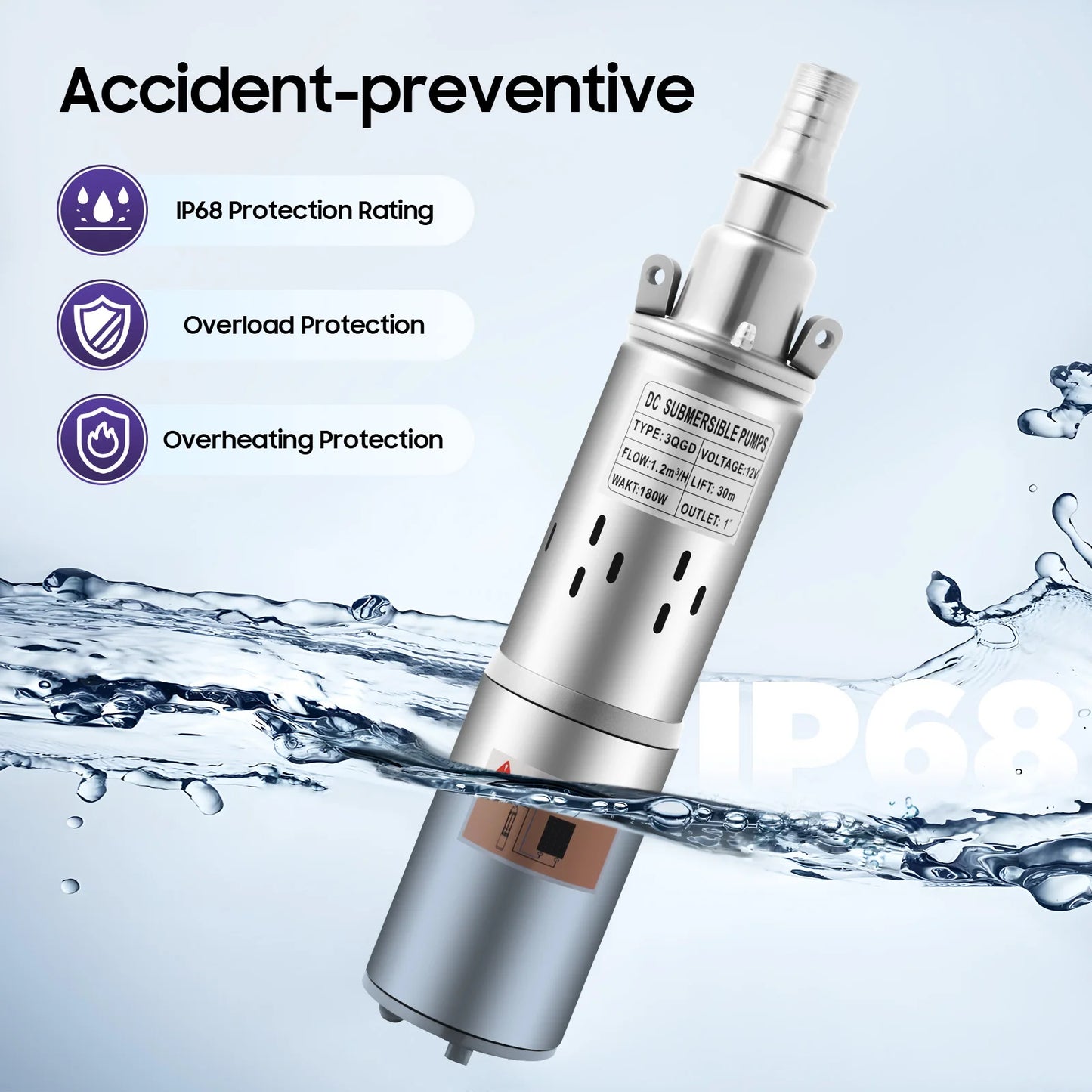

Protection Class: IP68

Number of Impellers: 1

Cable Wire Length: 17m/55.77ft

Product Size(D*H): 7.8*38.5cm/3.07*15.15in

Outlet Diameter: 2.5cm/1in

Package Size: 38*18*10cm/14.96*7.09*3.94in

Product Size: 4.5kg/9.92lbs

Gross Weight: 4.28kg/9.44lbs

Specification OF 24V

Material: Stainless Steel

Model: 3SYDC24V/S-30

Color: Silver

Process: Electroplating

Style: Modern

Installation Required: Yes

Power Supply: Solar

Voltage: DC 24V

Power: 200W

Current: 8.0A

Outlet: 25mm/0.98in

Max. Head: 30m/98.43ft

Max. Flow: 1.5m³/h

Applicable Well Size: ＞10cm/3.94in

Cable Length: 17m/55.77ft

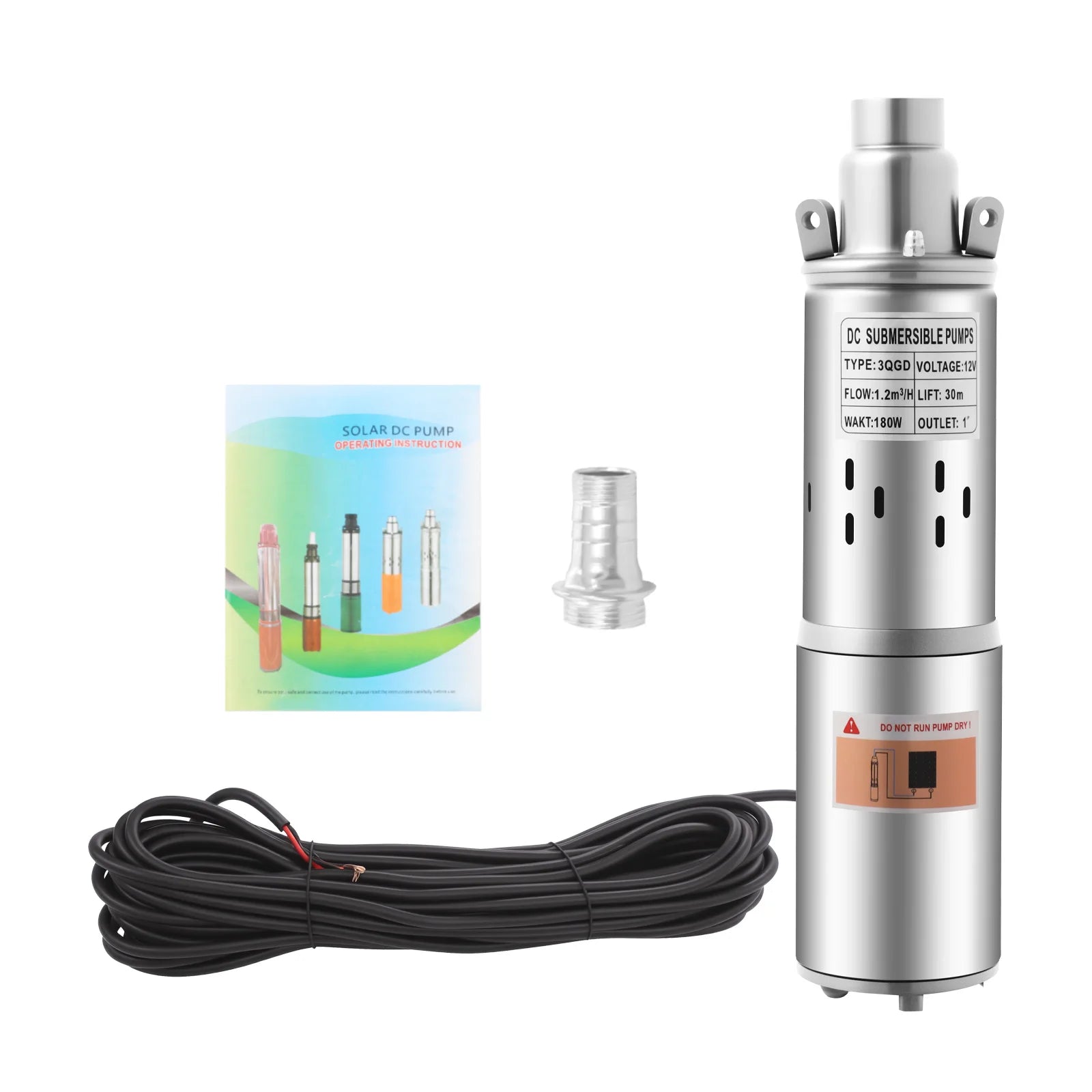

Package Included

1*Water Pump

1*Water Adaptor

1*English Manual

Notes

1. Please note that the pumping speed is related to the depth at which the water pump enters the water, and the deeper the depth, the lower the speed.

2. Please read the instructions carefully and take note of the safety precautions contained therein.

3. Forbidden to use in water with sediment to prevent the sediment from jamming the pump and burning the motor.

4. Please note that this product is only suitable for pumping clear water, not oil, chemical raw materials, and other liquids.

5. This product uses a medium with a temperature not exceeding 122℉, a density of<1.2kw/dm³, and a pH value of 4-10.

6. The lift of this product should not be too low. If it is lower than 80% of the specification, it may cause excessive current and damage.

7. Please note that this product does not include water pipes and filters.

8. Please carefully check the cable and power supply before use and take protective measures to avoid potential safety hazards.

9. Please do not use without water or with a low water level to avoid idling. It must be fully submerged in water when used.

10. These water pumps need to be installed vertically. Please install an additional check valve (not included) at the outlet to prevent backflow.

11. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you place the order.
